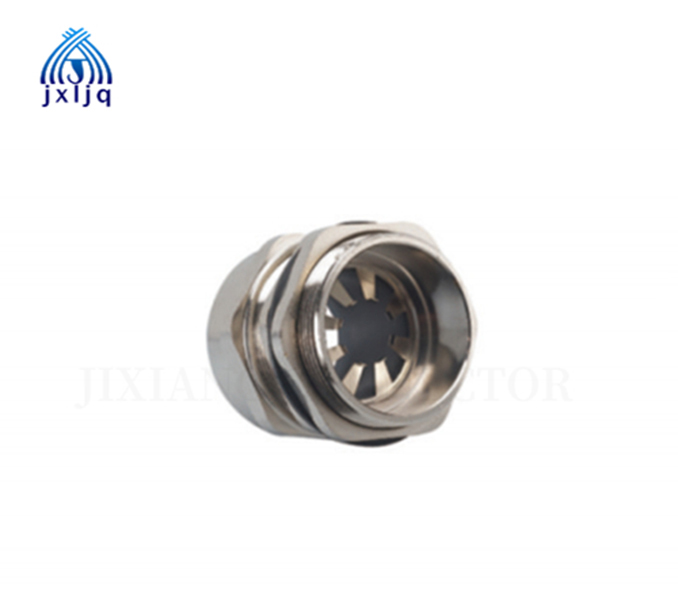

MG EMC Brass Cable Gland

MG Metal Cable Gland

Thread: Metric, PG,G(PF), NPT thread;

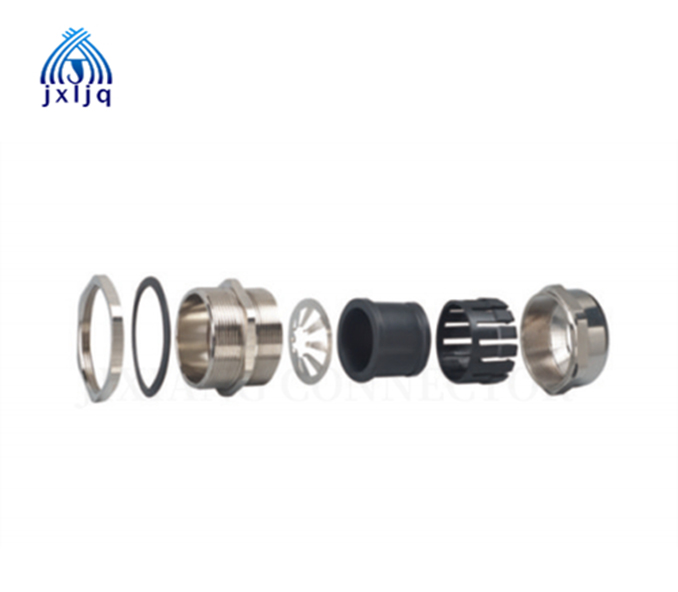

Materials: Brass with nickel plated/SS304,/SS316L forA,C, C1, F parts, Nylon PA66 for E part;
EPDMrubber for B.Dparts, (Also accept to make : resist high temperature rubber, resiststrong acid/alkali, etc);
Protection degree: IP68-10 Bar;
Working temperature:-40″C tol0oC in static state, or instantaneous heat resistance up to 120C;
Features: The claws and seals of excellent design, sealing nut has a “click” sound and re-open, can hold cable firmly and have a wider cable range.Resistant to salt water, weak acid,alcohol, oil, grease and common solvency.

Metric thread E type M series

Code	Thread MG	Cable range (mm)	Thread O.D (mm)	Mounting hole diameter (mm)	Thread length GL (mm)	Spanner size (mm)
JX-E.M12A-EMC	M12×1.5	3-5.3	12	12-12.3	8	17/17
JX-E.M12B-EMC	M12×1.5	4.5-7.8	12	12-12.3	8	17/17
JX-E.M16A-EMC	M16×1.5	4-7	16	16-16.3	9	22/22
JX-E.M16B-EMC	M16×1.5	6-10	16	16-16.3	9	22/22
JX-E.M20A-EMC	M20×1.5	5-8.8	20	20-20.3	9.5	24/24
JX-E.M20B-EMC		7-12	20	20-20.3	9.5	24/24
JX-E.M20C-EMC		9-14	20	20-20.3	9.5	26/26
JX-E.M25A-EMC	M25×1.5	12-16	25	25-25.4	12	32/32
JX-E.M25B-EMC	M25×1.5	14-18	25	25-25.4	12	32/32
JX-E.M32A-EMC	M32×1.5	16-22	32	32-32.4	12.5	41/41
JX-E.M32B-EMC	M32×1.5	18-25	32	32-32.4	12.5	41/41
JX-E.M40A-EMC	M40×1.5	21-25	40	40-40.4	15	50/50
JX-E.M40B-EMC	M40×1.5	24-30	40	40-40.4	15	50/50
JX-E.M50A-EMC	M50×1.5	26-32	50	50-50.4	15	60/60
JX-E.M50B-EMC	M50×1.5	31-41	50	50-50.4	15	60/60
JX-E.M63A-EMC	M63×1.5	40-46	63	63-63.4	15	73/73
JX-E.M63B-EMC	M63×1.5	44-51	63	63-63.4	15	73/73
JX-E.M75A-EMC	M75×1.5	50-56	75	75-75.6	15	85/85
JX-E.M75B-EMC	M75×1.5	56-66	75	75-75.6	15	85/85
JX-E.M90A-EMC	M90×1.5	58-68	90	90-91	20	102/102
JX-E.M90B-EMC	M90×1.5	66-77	90	90-91	20	102/102
JX-E.M100A-EMC	M100×1.5	58-68	100	100-101	25	116/116
JX-E.M100B-EMC	M100×1.5	66-77	100	100-101	25	116/116

Metric thread E type PG series

Code	Thread MG	Cable range (mm)	Thread O.D (mm)	Mounting hole diameter (mm)	Thread length GL (mm)	Spanner size (mm)
JX-E.PG7A-EMC	PG7-EMC	3-5.3	12.5	12.5-12.8	8	17/17
JX-E.PG7B-EMC	PG7-EMC	4.5-7.8	12.5	12.5-12.5	8	17/17
JX-E.PG9A-EMC	PG9-EMC	3-5.8	15.2	15.2-15.5	8	18/18
JX-E.PG9B-EMC	PG9-EMC	4.5-7.8	15.2	15.2-15.5	8	18/18
JX-E.PG11A-EMC	PG11-EMC	4-7	18.6	18.6-18.9	9	22/22
JX-E.PG11B-EMC	PG11-EMC	6-10	18.6	18.6-18.9	9	22/22
JX-E.PG13.5A-EMC	PG13.5-EMC	5-8.8	20.4	20.4-20.7	9.5	24/24
JX-E.PG13.5B-EMC	PG13.5-EMC	7-12	20.4	20.4-20.7	9.5	24/24
JX-E.PG16A-EMC	PG16-EMC	7-11	22.5	22.5-22.8	9.5	26/26
JX-E.PG16B-EMC	PG16-EMC	9-14	22.5	22.5-22.8	9.5	26/26
JX-E.PG21A-EMC	PG21-EMC	12-16	28.3	28.3-28.7	12	32/32
JX-E.PG21B-EMC	PG21-EMC	14-18	28.3	28.3-28.7	12	32/32
JX-E.PG29A-EMC	PG29-EMC	16-22	37	37-37.4	12.5	41/41
JX-E.PG29B-EMC	PG29-EMC	18-25	37	37-37.4	12.5	41/41
JX-E.PG36A-EMC	PG36-EMC	21-25	47	47-47.4	15	50/50
JX-E.PG36B-EMC	PG36-EMC	24-30	47	47-47.4	15	50/50
