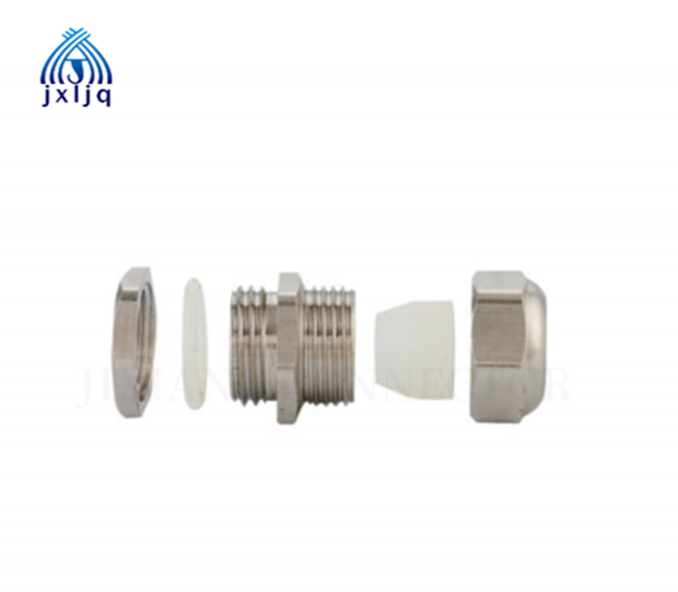

Material:Brass, nickel plated
Claw: Silicon rubber
Sealing ring: Silicon rubber
Approvals: IP68、ISO9001
Temperature Resistance: -60°C to+250℃.

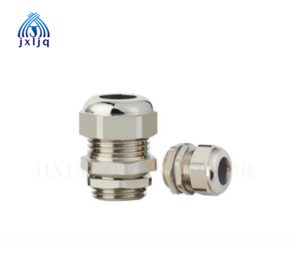

Silicon rubber insert type
Material:Brass, nickel plated
Claw: Silicon rubber
Sealing ring: Silicon rubber
Approvals: IP68、ISO9001
Temperature Resistance: -60°C to+250℃.
Application: For the wire connecting for automotive/marine equipment, lightingequipment, refrigeration and air conditioning, household appliances and measuringequipment, also for the outdoor wires connecting during the severe environment.
| Code | Thread AG | Cable range (mm) |
Thread O.D (mm) |
Mounting hole diameter (mm) |
Thread length GL(mm) |
Joint length (mm) |
Spanner size (mm) |
| JX-M8-SI | M8×1 | 5.5-2 | 8 | 8-8.2 | 5 | 16 | 12 |
| JX-M12A-SI | M12×1 | 6.5-3 | 12 | 12-12.2 | 7 | 19 | 14 |
| JX-M12B-SI | M12×1.25 | 8-3 | 12 | 12-12.2 | 7 | 16 | 16 |
| JX-M12C-SI | M12×1.5 | 8-3 | 12 | 12-12.2 | 7 | 16 | 16 |
| JX-M14-SI | M14×1.5 | 8-3 | 14 | 14-14.2 | 7 | 16 | 16 |
| JX-M16-SI | M16×1.5 | 9-4 | 16 | 16-16.2 | 8 | 20 | 20/18 |
| JX-M18-SI | M18×1.5 | 10-5 | 18 | 18-18.2 | 8 | 20 | 20 |
| JX-M20-SI | M20×1.5 | 12-8 | 20 | 20-20.2 | 8 | 21 | 24 |
| JX-M25-SI | M25×1.5 | 18-15 | 25 | 25-25.2 | 9 | 23 | 30 |
| JX-M32-SI | M32×1.5 | 22-18 | 32 | 32-32.2 | 10 | 26 | 35 |
| JX-M40-SI | M40×1.5 | 30-25 | 40 | 40-40.2 | 11 | 30 | 45 |
| JX-M50-SI | M50×1.5 | 38-35 | 50 | 50-50.2 | 12 | 32 | 55 |
| JX-M63-SI | M63×1.5 | 44-38 | 63 | 63-63.2 | 13 | 35 | 68 |
