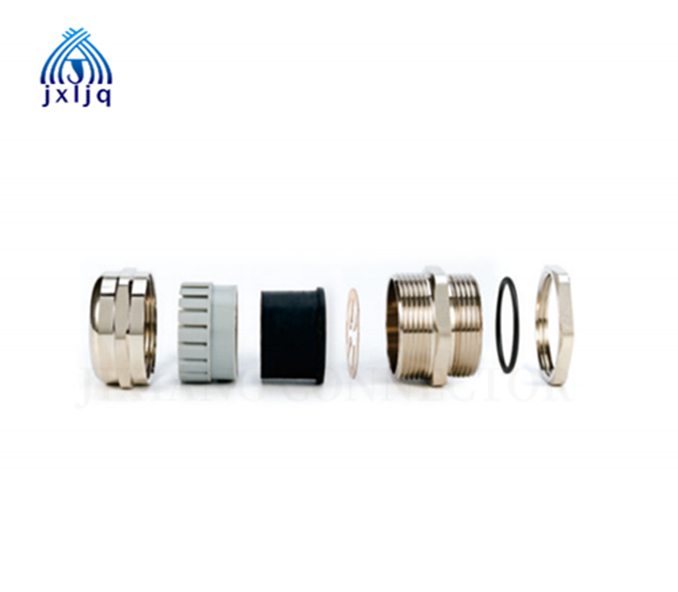

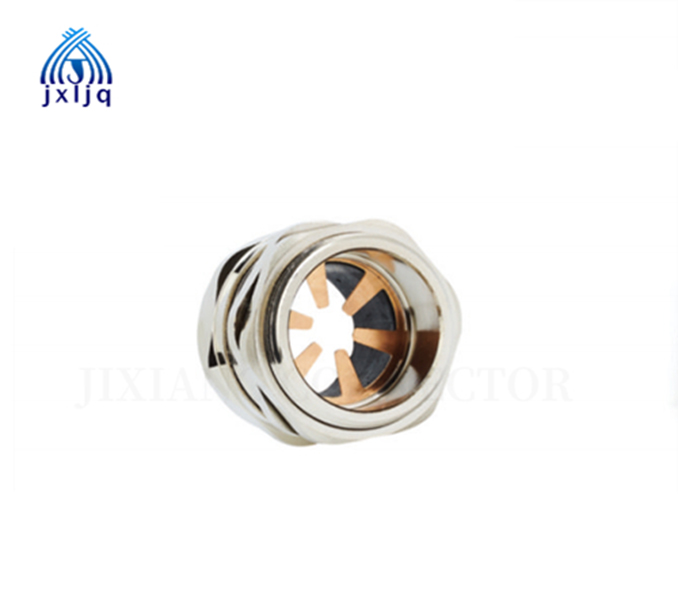

D Series EMC Brass/ Stainless Steel Cable Gland

EMC Brass Cable Gland

Material: Brass, nickel plated/SS304/SS316LClaw: PA
Sealing and sealing ring: NBR
Appravals: IP68、ISO9001、TUV
Protection degree: IP68
Temperature Resistance:-40c to 100-c, short time to 120~c.
Functlon: Easy installation, simply insert cable through the assembledgland and tighten gland locknut until cable is secured.These cable glandsare designed to withstand water, dust, salt, acid- base, alcohol, oil andcommon solvent.
Nates: Customization is availalble.

PG Thread type D series

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanners (mm)
JX-D.PG7-EMC	PG7	6.5-3	12.5	12.5-12.7	7	19	14
JX-D.PG9-EMC	PG9	8-4	15.2	15.2-15.4	8	20	17
JX-D.PG11-EMC	PG11	10-5	18.6	18.6-18.8	8	21	20/21
JX-D.PG13.5-EMC	PG 13.5	12-6	20.4	20.4-20.6	8	22	22
JX-D.PG16-EMC	PG 16	14-10	22.5	22.5-22.7	9	23	24
JX-D.PG19-EMC	PG 19	14-10	25	25-25.2	9	25	24/27
JX-D.PG21-EMC	PG21	18-13	28.3	28.3-28.5	9	27	30
JX-D.PG25-EMC	PG25	22-15	32	32-32.2	10	29	35
JX-D.PG29-EMC	PG29	25-18	37	37-37.2	10	31	40
JX-D.PG36-EMC	PG36	33-25	47	47-47.2	11	37	50
JX-D.PG42-EMC	PG42	38-32	54	54-54.2	13	38	57
JX-D.PG48-EMC	PG48	44-37	59.3	59.3-59.5	14	38	64
JX-D.PG63-EMC	PG63	52-42	72	72-72.2	15	42	78

Metric thread type

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spannersize (mm)
JX-D.M12-EMC	M12*1.5	6.5-3	12	12-12.2	7	19	14
JX-D.M14-EMC	M14*1.5	8-4	14	14-14.2	7	19	17
JX-D.M16-EMC	M16*1.5	8-4	16	16-16.2	8	20	18
JX-D.M18-EMC	M18*1.5	10-5	18	18-18.2	8	21	20
JX-D.M20-EMC	M20*1.5	12-6	20	20-20.2	8	22	22
JX-D.M22-EMC	M22*1.5	14-10	22	22-22.2	8	23	24
JX-D.M24-EMC	M2*1.5	14-10	24	24-24.2	9	25	24/27
JX-D.M25A-EMC	M25*1.5	14-10	25	25-25.2	9	25	24/27
JX-D.M25B-EMC	M25*1.5	18-13	25	25-25.2	9	27	30/27
JX-D.M27A-EMC	M27*1.5	18-13	27	27-27.2	9	27	30
JX-D.M27B-EMC	M27*2	18-13	27	27-27.2	9	27	30
JX-D.M28A-EMC	M28*1.5	18-13	28	28-28.2	9	27	30
JX-D.M28B-EMC	M28*2	18-13	28	28-28.2	9	27	30
JX-D.M30A-EMC	M30*1.5	18-13	30	30-30.2	9	29	30/32
JX-D.M30B-EMC	M30*2	18-13	30	30-30.2	9	29	30/32
JX-D.M32A-EMC	M32*1.5	22-15	32	32-32.2	10	29	35
JX-D.M32B-EMC	M32*2	22-15	32	32-32.2	10	29	35
JX-D.M33A-EMC	M33*1.5	22-15	33	33-33.2	10	29	35

Metric thread type

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-D.M33B-EMC	M33*2	22-15	33	33-33.2	10	29	35
JX-D.M36A-EMC	M36*1.5	25-18	36	36-36.2	10	31	40
JX-D.M36B-EMC	M36*2	25-18	36	36-36.2	10	31	40
JX-D.M37A-EMC	M37*1.5	25-18	37	37-37.2	10	31	40
JX-D.M37B-EMC	M37*2	25-18	37	37-37.2	10	31	40
JX-D.M40A-EMC	M40*1.5	25-18	40	40-40.2	11	31	40/45
JX-D.M40B-EMC	M40*2	25-18	40	40-40.2	11	31	40/45
JX-D.M40C-EMC	M40*1.5	30-22	40	40-40.2	11	35	45
JX-D.M40D-EMC	M40*2	30-22	40	40-40.2	11	35	45
JX-D.M42A-EMC	M42*1.5	30-22	42	42-42.2	11	35	45
JX-D.M42B-EMC	M42*2	30-22	42	42-42.2	11	35	45
JX-D.M47A-EMC	M47*1.5	33-25	47	47-47.2	11	37	50
JX-D.M47B-EMC	M47*2	33-25	47	47-47.2	11	37	50
JX-D.M48A-EMC	M48*L5	33-25	48	48-48.2	11	37	50/52
JX-D.M48B-EMC	M48*2	33-25	48	48-48.2	11	37	50/52
JX-D.M50A-EMC	M50*1.5	38-32	50	50-50.2	12	37	50/55
JX-D.M50B-EMC	M50*2	38-32	50	50-50.2	12	37	50/55
JX-D.M54A-EMC	M 54*1.5	38-32	54	54-54.2	12	38	57
JX-D.M54B-EMC	M54*2	38-32	54	54-54.2	12	38	57
JX-D.M56A-EMC	M56*1.5	38-32	56	56-56.2	12	38	57/59
JX-D.M56B-EMC	M56*2	38-32	56	56-56.2	12	38	57/59
JX-D.M60A-EMC	M60*1.5	44-37	60	60-60.2	13	38	64
JX-D.M60B-EMC	M60*2	44-37	60	60-60.2	13	38	64
JX-D.M63A-EMC	M63*1.5	44-37	63	63-63.2	13	38	64/68
JX-D.M63B-EMC	M63*2	44-37	63	63-63.2	13	38	64/68
JX-D.M64A-EMC	M64*1.5	44-37	64	64-64.2	13	38	64/68
JX-D.M64B-EMC	M64*2	44-37	64	64-64.2	13	38	64/68
JX-D.M72-EMC	M72*2	52-42	72	72-72.2	15	42	65/68
JX-D.M75-EMC	M75*2	52-42	75	75-75.2	15	42	78
JX-D.M80-EMC	M80*2	62-50	80	80-80.2	15	45	86/88
JX-D.M88-EMC	M88*2	70-60	88	88-88.2	15	45	98
JX-D.M100-EMC	M100*2	80-70	100	100-100.2	15	45	110

G Thread type 、NPT thread type D series

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-D.G1/4-EMC	Gl/4	6.5-3	13.1	19	7	19	14
JX-D.G3/8-EMC	G3/8	8-4	16.6	19	8	19	18
JX-D.G1/2-EMC	Gl/2	12-6	20.9	14	8	22	22
JX-D.G3/4-EMC	G3/4	18-13	26.4	14	9	25	30
JX-D.G1-EMC	G1	25-18	33.2	11	11	29	40
JX-D.G1-1/4-EMC	G1-1/4	33-25	41.9	11	13	35	50
JX-D.G1-1/2-EMC	G1-1/2	38-32	47.8	11	14	37	57
JX-D.G2-EMC	G2	44-37	59.6	11	14	38	64
JX-D.G2-1/2-EMC	G2-1/2	52-42	75.1	11	15	38	77
JX-D.G3-EMC	G3	70-65	87.8	11	15	48	94
JX-D.NPT1/4-EMC	NPT1/4	6.5-3	13.6	18	7	19	14
JX-D.NPT3/8-EMC	NPT3/8	8-4	17	18	8	19	18
JX-D.NPT1/2-EMC	NPT1/2	12-6	21.2	14	8	22	22
JX-D.NPT3/4-EMC	NPT3/4	18-13	26.5	14	9	25	30
JX-D.NPT1-EMC	NPT1	25-18	33.2	11.5	11	29	40
JX-D.NPT1-1/4-EMC	NPT1-1/4	33-25	41.9	11.5	13	35	50
JX-D.NPT1-1/2-EMC	NPT1-1/2	38-32	48	11.5	14	37	57
JX-D.NPT2-EMC	NPT2	44-37	60	11.5	14	38	64
JX-D.NPT2-1/2-EMC	NPT2-1/2	52-42	72.6	8	15	38	78
JX-D.NPT3-EMC	NPT3	70-65	88.6	8	15	45	98
