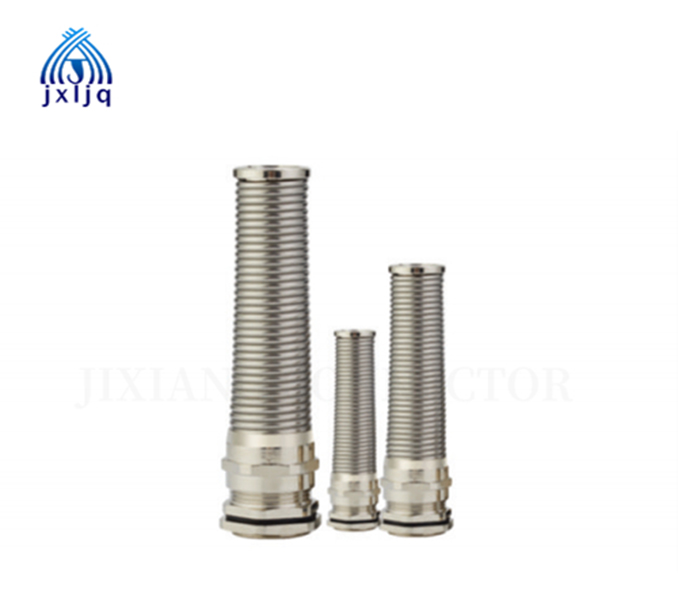

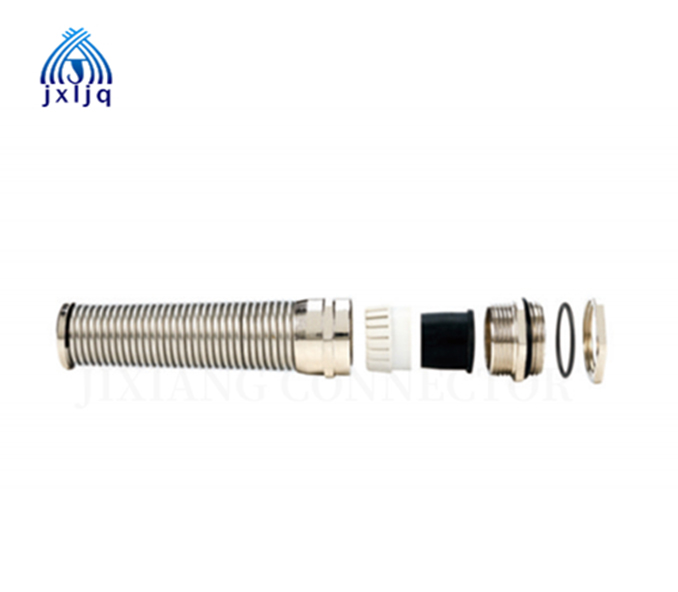

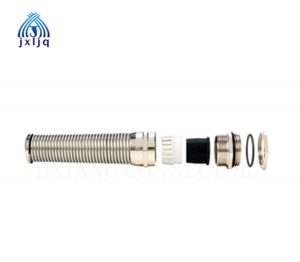

Brass Flexible Cable Gland

Product Features

Material: Brass with nickel platedProtection rating: IP67
Furnished with insulating liner
PG Thread and G thread can also be produced

1.Can be used in flexible metallic conduit or liquid tight conduit in Power plant,Power transmission system, communication system, building factory, railway,train, transportation system project, air conditioner, various machines, automatescontrolling plant.And protecting the electrical wire or cable outside the constructionand plant.
2.Positively bond the conduit to a box or enclosure

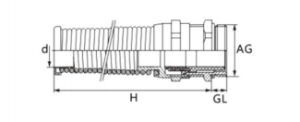

AG Thread	Cable Range (mm)	Thread Length (mm)	Body Height (mm)	Spanner Size (mm)	Thread O.D (mm)	Panel Mounting Hole (mm)
JX-PG7-FL	3-6.5	8	53	14	12.5	12.5-12.8
JX-PG9-FL	4-8	8.2	66	17	15.2	15.2-15.5
JX-PG11-FL	5-10	8.6	77	20	18.6	18.6-18.9
JX-PG13.5-FL	6.7-12	9	88	22	20.4	20.4-20.7
JX-PG16A-FL	10.2-14	10	98	24	22.5	22.5-22.8
JX-PG16B-FL	6-12	10	98	24	22.5	22.5-22.8
JX-PG21A-FL	13-18	10	111	30	28.3	28.3-28.6
JX-PG21B-FL	9-16	10	111	30	28.3	28.3-28.6

AG Thread	Cable Range (mm)	Thread Length (mm)	Body Height (mm)	Spanner Size (mm)	Thread O.D (mm)	Panel Mounting Hole (mm)
JX-M12-FL	3-6.5	8	53	14	12	12-12.3
JX-M16-FL	4-8	8.2	66	17	16	16-16.3
JX-M20-FL	6.7-12	9	88	22	20	20-20.3
JX-M22-FL	10-14	8	90	24	22	22-22.3
JX-M25A-FL	13-18	10	111	30	25	25-25.3
JX-M25B-FL	9-16	10	111	30	25	25-25.3
JX-M32-FL	15-22	11	120	35	32	32-32.5
