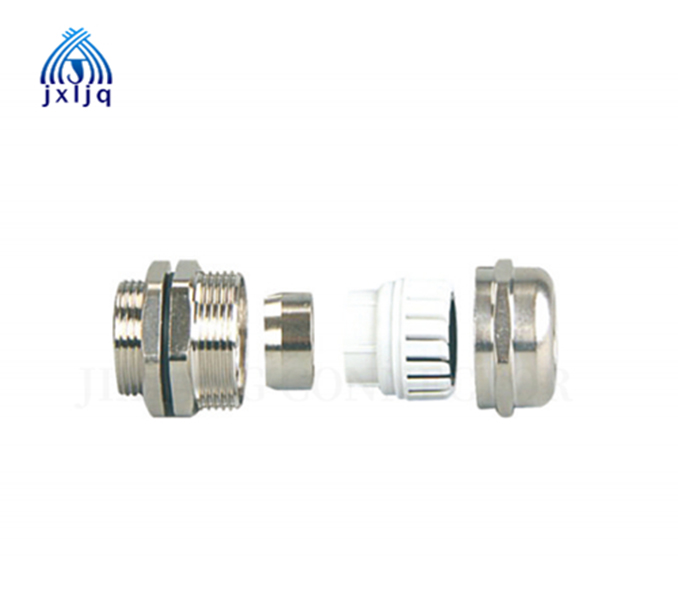

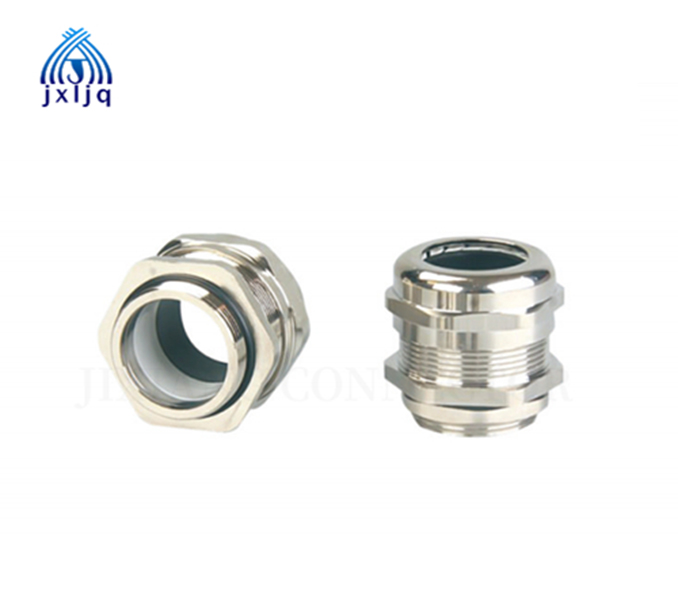

Material:Nickel-plated brass
Fastener:Mylon PA
sealing:NBR
O-sealing ring:NBR
Technical Data:
Material:Nickel-plated brass
Working temperature:-40℃ to100Rc in static state,or instantaneous heatresistance up to 120C;Protection degree:IP68-10 Bar(with O-ring);
Fastener:Mylon PA
sealing:NBR
O-sealing ring:NBR
Free of halogen.phosphorus and cadmiumCommand(ROHS) satisfy
| Code | Thread MG | Cable range (mm) | Thread O.D (mm) | Mounting hole diameter (mm) | Thread length GL (mm) | Spanner size (mm) |
| JX-E.PG7A-EMC | PG7-EMC | 3-5.3 | 12.5 | 12.5-12.8 | 8 | 17/17 |
| JX-E.PG7B-EMC | 4.5-7.8 | 12.5 | 12.5-12.5 | 8 | 17/17 | |
| JX-E.PG9A-EMC | PG9-EMC | 3-5.8 | 15.2 | 15.2-15.5 | 8 | 18/18 |
| JX-E.PG9B-EMC | 4.5-7.8 | 15.2 | 15.2-15.5 | 8 | 18/18 | |
| JX-E.PG11A-EMC | PG11-EMC | 4-7 | 18.6 | 18.6-18.9 | 9 | 22/22 |
| JX-E.PG11B-EMC | 6-10 | 18.6 | 18.6-18.9 | 9 | 22/22 | |
| JX-E.PG13.5A-EMC | PG13.5-EMC | 5-8.8 | 20.4 | 20.4-20.7 | 9.5 | 24/24 |
| JX-E.PG13.5B-EMC | 7-12 | 20.4 | 20.4-20.7 | 9.5 | 24/24 | |
| JX-E.PG16A-EMC | PG16-EMC | 7-11 | 22.5 | 22.5-22.8 | 9.5 | 26/26 |
| JX-E.PG16B-EMC | 9-14 | 22.5 | 22.5-22.8 | 9.5 | 26/26 | |
| JX-E.PG21A-EMC | PG21-EMC | 12-16 | 28.3 | 28.3-28.7 | 12 | 32/32 |
| JX-E.PG21B-EMC | 14-18 | 28.3 | 28.3-28.7 | 12 | 32/32 | |
| JX-E.PG29A-EMC | PG29-EMC | 16-22 | 37 | 37-37.4 | 12.5 | 41/41 |
| JX-E.PG29B-EMC | 18-25 | 37 | 37-37.4 | 12.5 | 41/41 | |
| JX-E.PG36A-EMC | PG36-EMC | 21-25 | 47 | 47-47.4 | 15 | 50/50 |
| JX-E.PG36B-EMC | 24-30 | 47 | 47-47.4 | 15 | 50/50 |
