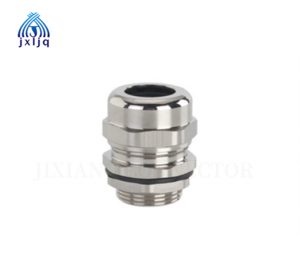

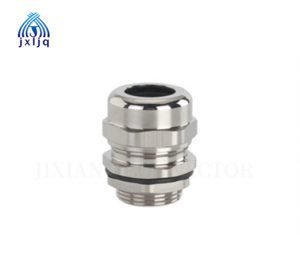

Brass MG Cable Gland

Product Features

Thread: Metric, PG, G(PF),NPT thread;

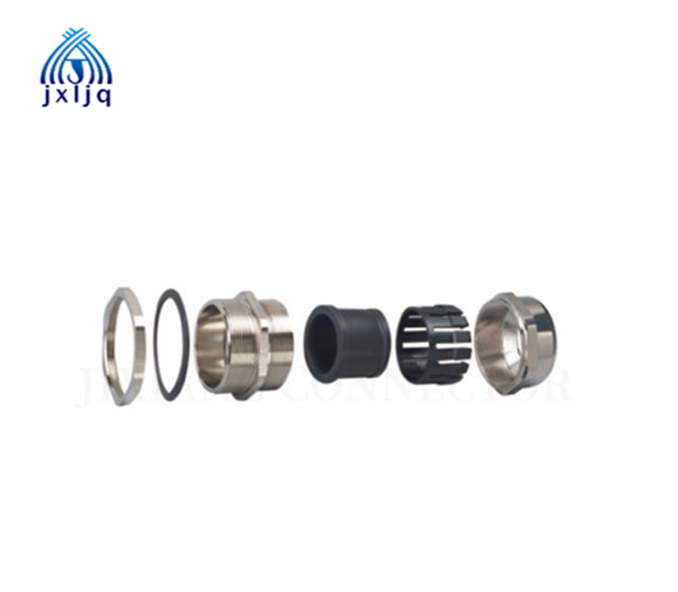

Materials: Brass with nickel plated for A,F parts，Nylon PA66
EPDMrubber for B.Dparts, (Also accept to make super: resist high temperature nubber, resiststrong acid/alkali, etc);
Protection degree: IP68-10 Bar;
Working temperature:-40C to100’C in static state,or instantaneous heat resistanceup to 120°C;
Features: The claws and seals of excellent design, sealing nut has a “click” soundand re-open, can hold cable firmly and have a wider cable range.
Resistant to salt water,weak acid , alcohol, oil, grease and common solvency.

Metric thread type

Thread O.D (mm)	Code	Cable range (mm)	Thread O.D (mm)	Mounting hole diameter (mm)	Thread length GL(mm)	Spanner size (mm)
M12×1.5	JX-M12A-MG	3-5.3	12	12-12.3	8	17/17
M12×1.5	JX-M12B-MG	4.5-7.8	12	12-12.3	8	17/17
M16×1.5	JX-M16A-MG	4-7	16	16-16.3	9	22/22
M16×1.5	JX-M16B-MG	6-10	16	16-16.3	9	22/22
M20×1.5	JX-M20A-MG	5-8.8	20	20-20.3	9.5	24/24
	JX-M20B-MG	7-12	20	20-20.3	9.5	24/24
	JX-M20C-MG	9-14	20	20-20.3	9.5	26/26
M25×1.5	JX-M25-MG	12-16	25	25-25.4	12	32/32
M32×1.5	JX-M32A-MG	16-22	32	32-32.4	12.5	41/41
M32×1.5	JX-M32B-MG	18-25	32	32-32.4	12.5	41/41
M40×1.5	JX-M40A-MG	21-25	40	40-40.4	15	50/50
M40×1.5	JX-M40B-MG	24-30	40	40-40.4	15	50/50
M50×1.5	JX-M50A-MG	26-32	50	50-50.4	15	60/60
M50×1.5	JX-M50B-MG	31-41	50	50-50.4	15	60/60
M63×1.5	JX-M63A-MG	40-46	63	63-63.4	15	73/73
M63×1.5	JX-M63B-MG	44-51	63	63-63.4	15	73/73
M75×1.5	JX-M75A-MG	50-56	75	75-75.6	15	85/88
M75×1.5	JX-M75B-MG	56-66	75	75-75.6	15	85/88
M90×1.5	JX-M90A-MG	58-68	90	90-91	20	102/106
M90×1.5	JX-M90B-MG	66-77	90	90-91	20	102/106
M100×1.5	JX-M100A-MG	58-68	100	100-101	25	116/120
M100×1.5	JX-M100B-MG	66-77	100	100-101	25	116/120

PG thread type

Thread O.D (mm)	Code	Cable range (mm)	Thread O.D (mm)	Mounting hole diameter (mm)	Thread length GL(mm)	Spanner size (mm)
PG7	JX-PG7A-MG	3-5.3	12.5	12.5-12.8	8	17/17
PG7	JX-PG7B-MG	4.5-7.8	12.5	12.5-12.8	8	17/17
PG9	JX-PG9A-MG	3-5.8	15.2	15.2-15.5	8	18/18
PG9	JX-PG9B-MG	4.5-7.8	15.2	15.2-15.5	8	18/18
PG11	JX-PG11A-MG	4-7	18.6	18.6-18.9	9	22/22
PG11	JX-PG11B-MG	6-10	18.6	18.6-18.9	9	22/22
PG13.5	JX-PG13.5A-MG	5-8.8	20.4	20.4-20.7	9.5	24/24
PG13.5	JX-PG13.5B-MG	7-12	20.4	20.4-20.7	9.5	24/24
PG16	JX-PG16A-MG	7-11	22.5	22.5-22.8	9.5	26/26
PG16	JX-PG16B-MG	9-14	22.5	22.5-22.8	9.5	26/26
PG21	JX-PG21A-MG	12-16	28.3	28.3-28.7	12	32/32
PG21	JX-PG21B-MG	14-18	28.3	28.3-28.7	12	32/32
PG29	JX-PG29A-MG	16-22	37	37-37.4	12.5	41/41
PG29	JX-PG29B-MG	18-25	37	37-37.4	12.5	41/41
PG36	JX-PG36A-MG	21-25	47	47-47.4	15	50/50
PG36	JX-PG36B-MG	24-30	47	47-47.4	15	50/50

G Thread type、NPT Thread type

Thread O.D (mm)	Code	Cable range (mm)	Thread O.D (mm)	Mounting hole diameter (mm)	Thread length GL(mm)	Spanner size (mm)
G1/4″	JX-G1/4A-MG	3-5.3	13.157	13.2-13.4	8	17/17
G1/4″	JX-G1/4B-MG	4.5-7.8	13.157	13.2-13.4	8	17/17
G3/8″	JX-G3/8A-MG	4-7	16.662	16.7-16.9	9	22/22
G3/8″	JX-G3/8B-MG	6-10	16.662	16.7-16.9	9	22/22
G1/2″	JX-G1/2A-MG	7-11	20.955	21-21.2	9.5	26/26
G1/2″	JX-G1/2B-MG	9-14	20.955	21-21.2	9.5	26/26
G3/4″	JX-G3/4A-MG	12-16	26.441	26.5-26.8	12	32/32
G3/4″	JX-G3/4B-MG	14-18	26.441	26.5-26.8	12	32/32
G1″	JX-G1A-MG	16-22	33.249	33.3-33.6	12.5	41/41
G1″	JX-G1-MG	18-25	33.249	33.3-33.6	12.5	41/41
G11/4″	JX-G11/4A-MG	21-25	41.91	42-42.3	15	50/50
G11/4″	JX-G11/4B-MG	24-30	41.91	42-42.3	15	50/50
G11/2″	JX-G11/2A-MG	26-32	47.803	48-48.4	15	60/60
G11/2″	JX-G11/2B-MG	31-41	47.803	48-48.4	15	60/60
G2″	JX-G2A-MG	40-46	59.614	60-60.4	15	73/73
G2″	JX-G2B-MG	44-51	59.614	60-60.4	15	73/73
G21/2″	JX-G21/2A-MG	50-56	75.184	75.2-75.6	18	85/88
G21/2″	JX-G21/2B-MG	66-56	75.184	75.2-75.6	18	85/88
NPT3/8″	JX-NPT3/8A-MG	4-7	17.055		13	22
NPT3/8″	JX-NPT3/8B-MG	6-10	17.055		13	22
NPT1/2″	JX-NPT1/2A-MG	7-11	21.223		13	26
NPT1/2″	JX-NPT1/2B-MG	9-14	21.223		13	26
NPT3/4″	JX-NPT3/4A-MG	12-16	26.568		14	32
NPT3/4″	JX-NPT3/4B-MG	14-18	26.568		14	32
NPT1″	JX-NPT1A-MG	16-22	33.227		15	41
NPT1″	JX-NPT1B-MG	18-25	33.227		15	41
NPT11/4″	JX-NPT11/4A-MG	21-25	41.984		15	50
NPT11/4″	JX-NPT11/4B-MG	240-30	41.984		15	50
