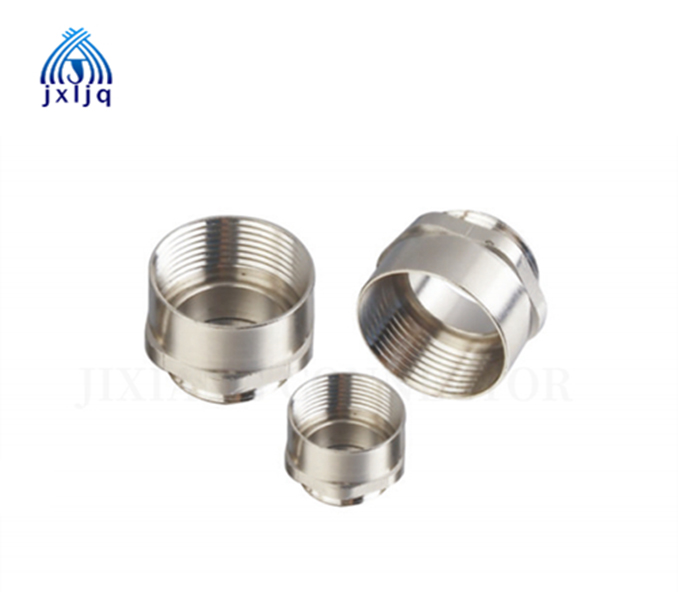

Material: Brass with nlickel plated/SS304,/SS316L
Acoessories: Locknut,Sealing Washer
Product Features
Material: Brass with nlickel plated/SS304,/SS316L
Armbient temperature: – 40C-100~c,temporary: to 120CFunctiene Change Smaller Thread to Larger thread.
Application: lt provides a means of connection between cable entry devices and equipmenthaving dissmilar threads.
Acoessories: Locknut,Sealing Washer
| Circle series Code | Hexagon series | Size | Thread Length GL(mm) |
Height (h)mm |
Hexagon size mm | |
| Outer Thread | InnerThread | |||||
| JX-M12/16A-EN | JX-M12/16B-EN | M12×1.5 | M16×1.5 | 6 | 8.5 | 18 |
| JX-M16/20A-EN | JX-M16/20B-EN | M16×1.5 | M20×1.5 | 6.5 | 9 | 24 |
| JX-M20/25A-EN | JX-M20/25B-EN | M20×1.5 | M25×1.5 | 7.5 | 10 | 30 |
| JX-M25/32A-EN | JX-M25/32B-EN | M25×1.5 | M32×1.5 | 8 | 11.5 | 39 |
| JX-M32/40A-EN | JX-M32/40B-EN | M32×1.5 | M40×1.5 | 9 | 12.5 | 43 |
| JX-M40/50A-EN | JX-M40/50B-EN | M40×1.5 | M50×1.5 | 10 | 14 | 57 |
| JX-M50/63A-EN | JX-M50/63B-EN | M50×1.5 | M63×1.5 | 10 | 14 | 64 |
| JX-PG7/9A-EN | JX-PG7/9B-EN | PG7 | PG9 | 6 | 8.5 | 17 |
| JX-PG9/11A-EN | JX-PG9/11B-EN | PG9 | PG11 | 6.5 | 8.5 | 20 |
| JX-PG11/13.5A-EN | JX-PG11/13.5B-EN | PG11 | PG13.5 | 6.5 | 9 | 22 |
| JX-PG13.5/16A-EN | JX-PG13.5/16B-EN | PG13.5 | PG16 | 6.5 | 9.5 | 24 |
| JX-PG16/21A-EN | JX-PG16/21B-EN | PG16 | PG21 | 7.5 | 10 | 30 |
| JX-PG21/29A-EN | JX-PG21/29B-EN | PG21 | PG29 | 8 | 11.5 | 39 |
| JX-PG29/36A-EN | JX-PG29/36B-EN | PG29 | PG36 | 9 | 12.5 | 50 |
| JX-PG36/42A-EN | JX-PG36/42B-EN | PG36 | PG42 | 10 | 14 | 57 |
| JX-PG42/48A-EN | JX-PG42/48B-EN | PG42 | PG48 | 10 | 14 | 64 |
| JX-NPT3/8-NPT1/2A-EN | JX-NPT3/8-NPT1/2B-EN | NPT3/8″ | NPT1/2″ | 6.5 | 9 | 24 |
| JX-NPT1/2-NPT3/4A-EN | JX-NPT1/2-NPT3/4B-EN | NPT1/2″ | NPT3/4″ | 7.5 | 10 | 30 |
| JX-NPT3/4-NPT1A-EN | JX-NPT3/4-NPT1B-EN | NPT3/4″ | NPT1″ | 8 | 11.5 | 39 |
| JX-NPT1-NPT1-1/4A-EN | JX-NPT1-NPT1-1/4B-EN | NPT1″ | NPT1-1/4″ | 9 | 12.5 | 50 |
