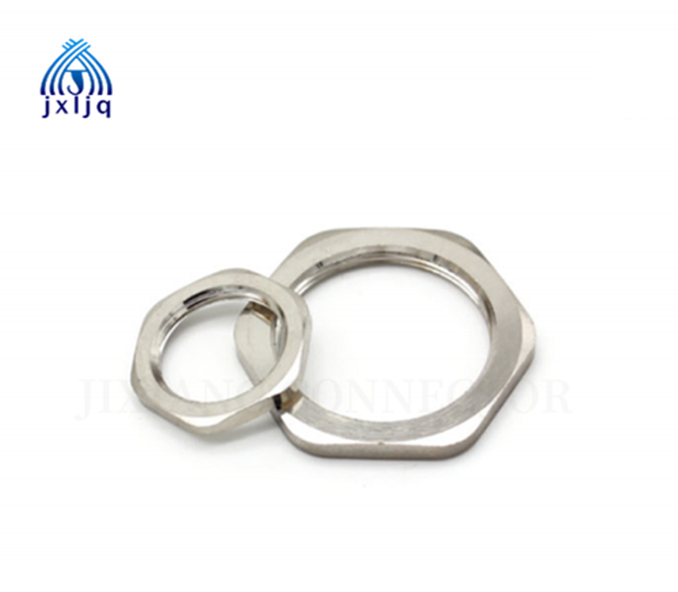

Product Features
Material: Brass, nickel plated/SS304/SS316L
Function: For using most electrical fittings.
Material: Brass, nickel plated/SS304/SS316L
Function: For using most electrical fittings.
Product Features
Material: Brass, nickel plated/SS304/SS316L
Function: For using most electrical fittings.
| Code | Thread AG | Thickness(mm) | Spanner size(mm) | Code | Thread AG | Thickness(mm) | Spanner size(mm) |
| JX-M12-ML | M12 | 3 | 14 | JX-PG7-ML | PG7 | 3 | 14 |
| JX-M14-ML | M14 | 3 | 17 | JX-PG9-ML | PG9 | 3 | 17 |
| JX-M16-ML | M16 | 3 | 18 | JX-PG11-ML | PG11 | 3 | 20 |
| JX-M18-ML | M18 | 3 | 20 | IX-PG13.5-ML | PG13.5 | 3 | 22 |
| JX-M20-ML | M20 | 3 | 22 | JX-PG16-ML | PG16 | 3.2 | 24 |
| JX-M22-ML | M22 | 3.2 | 24 | JX-PG19-ML | PG19 | 3.5 | 27 |
| JX-M24-ML | M24 | 3.5 | 27 | JX-PG21-ML | PG21 | 4 | 30 |
| JX-M25-ML | M25 | 3.5 | 27 | IX-PG25-ML | PG25 | 4 | 35 |
| JX-M27-ML | M27 | 4 | 30 | JX-PG29-ML | PG29 | 4 | 40 |
| JX-M28-ML | M28 | 4 | 30 | JX-PG36-ML | PG36 | 5.5 | 50 |
| JX-M30-ML | M30 | 4 | 32 | JX-PG42-ML | PG42 | 6 | 57 |
| JX-M32-ML | M32 | 4 | 35 | JX-PG48-ML | PG48 | 6.5 | 64 |
| JX-M33-ML | M33 | 4 | 35 | IX-PG63-ML | PG63 | 8.5 | 77 |
| JX-M36-ML | M36 | 4 | 40 | JX-G1/4-ML | G1/4 | 3 | 14 |
| JX-M37-ML | M37 | 4 | 40 | JX-G3/8-ML | G3/8 | 3 | 18 |
| JX-M40-ML | M40 | 4.5 | 45 | JX-G1/2-ML | G1/2 | 3 | 22 |
| JX-M42-ML | M42 | 5 | 45 | JX-G3/4-ML | G3/4 | 4 | 30 |
| JX-M47-ML | M47 | 5.5 | 50 | JX-G1-ML | G1 | 4 | 40 |
| JX-M48-ML | M48 | 5.5 | 52 | JX-G1-1/4-ML | G1-1/4 | 5.5 | 50 |
| JX-M50-ML | M50 | 5.5 | 55 | JX-G1-1/2-ML | G1-1/2 | 5.5 | 57 |
| JX-M54-ML | M54 | 5.5 | 57 | JX-G2-ML | G2 | 6 | 64 |
| JX-M56-ML | M56 | 5.5 | 59 | JX-G2-1/2-ML | G2-1/2 | 8.5 | 77 |
| JX-M60-ML | M60 | 6 | 64 | JX-G3-ML | G3 | 9 | 94 |
| JX-M63-ML | M63 | 6 | 68 | JX-NPT1/4-ML | NPT1/4 | 3 | 14 |
| JX-M64-ML | M64 | 6 | 68 | JX-NPT3/8-ML | NPT3/8 | 3 | 18 |
| JX-M72-ML | M72 | 8.5 | 77 | JX-NPT1/2-ML | NPT1/2 | 3 | 22 |
| JX-M75-ML | M75 | 8.5 | 77 | JX-NPT3/4-ML | NPT3/4 | 4 | 30 |
| JX-M80-ML | M80 | 9 | 88 | JX-NPT1-ML | NPT1 | 4 | 40 |
| JX-M88-ML | M88 | 9 | 94 | JX-NPT1-1/4-ML | NPT1-1/4 | 5.5 | 50 |
| JX-M100-ML | M100 | 9 | 110 | JX-NPT1-1/2-ML | NPT1-1/2 | 5.5 | 57 |
| JX-NPT2-ML | NPT2 | 6 | 64 | ||||
| JX-NPT2-1/2-ML | NPT2-1/2 | 8.5 | 77 | ||||
| JX-NPT3-ML | NPT3 | 9 | 94 |
