Material: Brass with nickel plated/SS304/SS316L
Ambient temperature: – 40°C~ 100°C, temporary: to 120°C

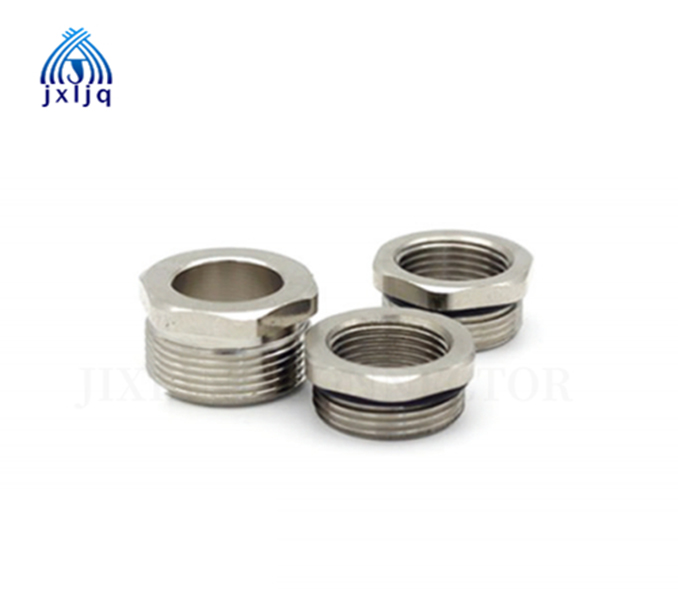

Functien: Change larger Thread to smaller Thread.
Product Features
Material: Brass with nickel plated/SS304/SS316L
Ambient temperature: – 40°C~ 100°C, temporary: to 120°C
Functien: Change larger Thread to smaller Thread.
Application: A reducer is used if the dimensions of existing tapped Holes are
too large for a given gland. It provides a means of connection between cable entry devices and equipment having different threads.
Accessories: Locknut, Sealing Washer
| Code | Hexagon series | Size | Thread Length GL(mm) | Height (h)mm | Hexagon size(D)mm | |
| Outer Thread(Dl) | Inner Thread(D2) | |||||
| JX-M16/12A-RE | JX-M16/12B-RE | M16X1.5 | M12X1.5 | 6 | 8.5 | 18 |
| JX-M20/16A-RE | JX-M20/16B-RE | M 20X1.5 | M 16X1.5 | 6.5 | 9 | 24 |
| JX-M25/20A-RE | JX-M25/20B-RE | M25X1.5 | M20X1.5 | 7.5 | 10 | 30 |
| JX-M32/25A-RE | JX-M32/25B-RE | M32X1.5 | M25X1.5 | 8 | 11.5 | 40 |
| JX-M40/32A-RE | JX-M40/32B-RE | M40X1.5 | M32X1.5 | 9 | 12.5 | 43 |
| JX-M50/40A-RE | JX-M50/40B-RE | M50X1.5 | M40X1.5 | 10 | 14 | 57 |
| JX-M63/50A-RE | JX-M63/50B-RE | M63X1.5 | M50X1.5 | 10 | 14 | 64 |
| JX-PG9/7A-RE | JX-PG9/7B-RE | PG9 | PG7 | 6 | 8.5 | 17 |
| JX-PG11/9A-RE | JX-PG11/9B-RE | PG11 | PG9 | 6.5 | 8.5 | 20 |
| JX-PG13.5/11A-RE | JX-PG13.5/11B-RE | PG13.5 | PG11 | 6.5 | 9 | 22 |
| JX-PG16/13.5A-RE | JX-PG16/13.5B-RE | PG16 | PG13.5 | 6.5 | 9.5 | 24 |
| JX-PG21/16A-RE | JX-PG21/16B-RE | PG21 | PG 16 | 7.5 | 10 | 30 |
| JX-PG29/21A-RE | JX-PG29/21B-RE | PG29 | PG21 | 8 | 11.5 | 40 |
| JX-PG36/29A-RE | JX-PG36/29B-RE | PG36 | PG29 | 9 | 12.5 | 50 |
| JX-PG42/36A-RE | JX-PG42/36B-RE | PG42 | PG36 | 10 | 14 | 57 |
| JX-PG48/42A-RE | JX-PG48/42B-RE | PG48 | Pg42 | 10 | 14 | 64 |
| JX-NPT1/2-NPT3/8A-RE | JX-NPT1/2-NPT3/8B-RE | NPTl/2 “ | NPT3/8 “ | 6.5 | 9 | 24 |
| JX-NPT3/4-NPT1/2A-RE | JX-NPT3/4-NPT1/2B-RE | NPT3/4 “ | NPTl/2 “ | 7.5 | 10 | 30 |
| JX-NPT1-NPT3/4A-RE | JX-NPT1-NPT3/4B-RE | NPT1 H | NPT3/4 “ | 8 | 11.5 | 40 |
| JX-NPT1-1/4-NPT1A-RE | JX-NPT1-1/4-NPT1B-RE | NPTl-l/4 “ | NPT1 “ | 9 | 12.5 | 50 |
