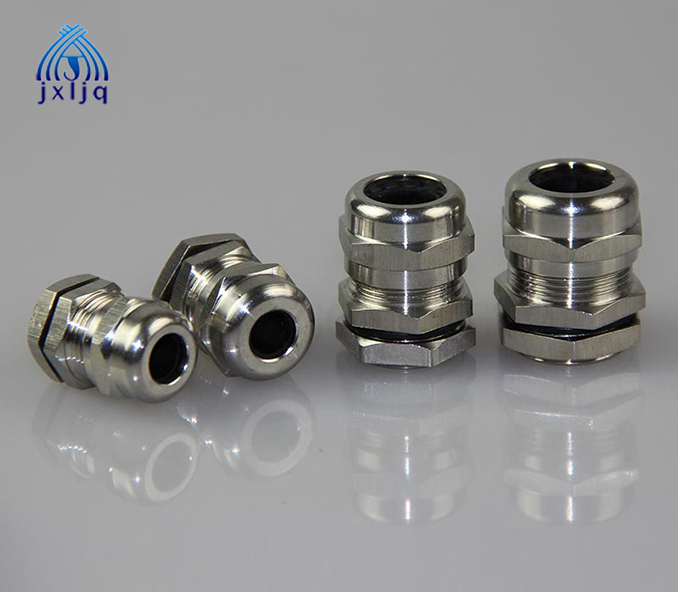

Product Description
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃

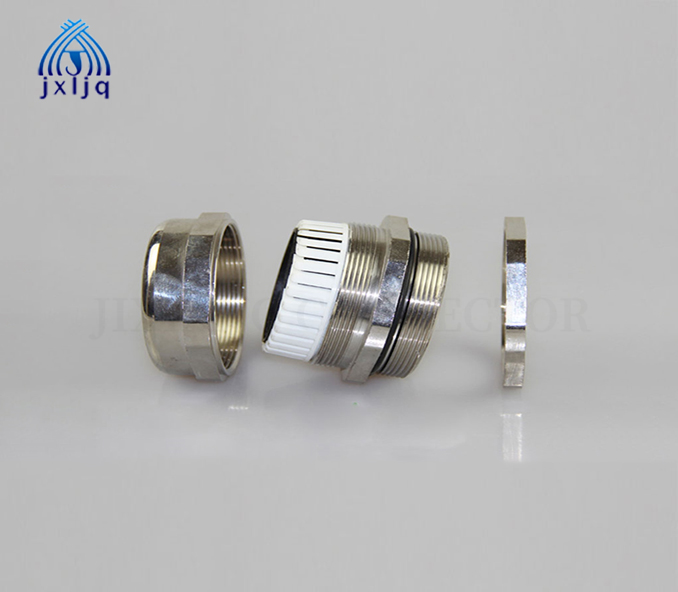

Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured.
These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
The Drawing of Stainless Steel Gland
Stainless Steel Cable Gland – G,NPT Thread
| Product Code |
Thread AG |
Cable range
(mm) |
Thread O.D.
(mm) |
Thread No. Per Inch |
Thread length GL
(mm) |
Joint Length
(mm) |
Spanner Size
(mm) |
| JX-G1/4-SS |
G1/4 |
3-6.5 |
13.1 |
19 |
7 |
19 |
14 |
| JX-G3/8-SS |
G3/8 |
4-8 |
16.6 |
19 |
8 |
19 |
18 |
| JX-G1/2-SS |
G1/2 |
6-12 |
20.9 |
14 |
8 |
22 |
22 |
| JX-G3/4-SS |
G3/4 |
13-18 |
26.4 |
14 |
9 |
25 |
30 |
| JX-G1-SS |
G1 |
18-25 |
33.2 |
11 |
11 |
29 |
40 |
| JX-G11/4-SS |
G1-1/4 |
25-33 |
41.9 |
11 |
13 |
35 |
50 |
| JX-G11/2-SS |
G1-1/2 |
32-38 |
47.8 |
11 |
14 |
37 |
57 |
| JX-G2-SS |
G2 |
37-44 |
59.6 |
11 |
14 |
38 |
64 |
| JX-G21/2-SS |
G2-1/2 |
42-52 |
75.1 |
11 |
15 |
38 |
77 |
| JX-G3-SS |
G3 |
65-70 |
87.8 |
11 |
15 |
48 |
94 |
| JX-NPT1/4-SS |
NPT1/4 |
3-6.5 |
13.6 |
18 |
7 |
19 |
14 |
| JX-NPT3/8-SS |
NPT3/8 |
4-8 |
17 |
18 |
8 |
19 |
18 |
| JX-NPT1/2-SS |
NPT1/2 |
6-12 |
21.2 |
14 |
8 |
22 |
22 |
| JX-NPT3/4-SS |
NPT3/4 |
13-18 |
26.5 |
14 |
9 |
25 |
30 |
| JX-NPT1-SS |
NPT1 |
18-25 |
33.2 |
11.5 |
11 |
29 |
40 |
| JX-NPT11/4-SS |
NPT1-1/4 |
25-33 |
41.9 |
11.5 |
13 |
35 |
50 |
| JX-NPT11/2-SS |
NPT1-1/2 |
32-38 |
48 |
11.5 |
14 |
37 |
57 |
| JX-NPT2-SS |
NPT2 |
37-44 |
60 |
11.5 |
14 |
38 |
64 |
| JX-NPT21/2-SS |
NPT2-1/2 |
42-52 |
72.6 |
8 |
15 |
38 |
77 |
| JX-NPT3-SS |
NPT3 |
65-70 |
88.6 |
8 |
15 |
48 |
94 |
