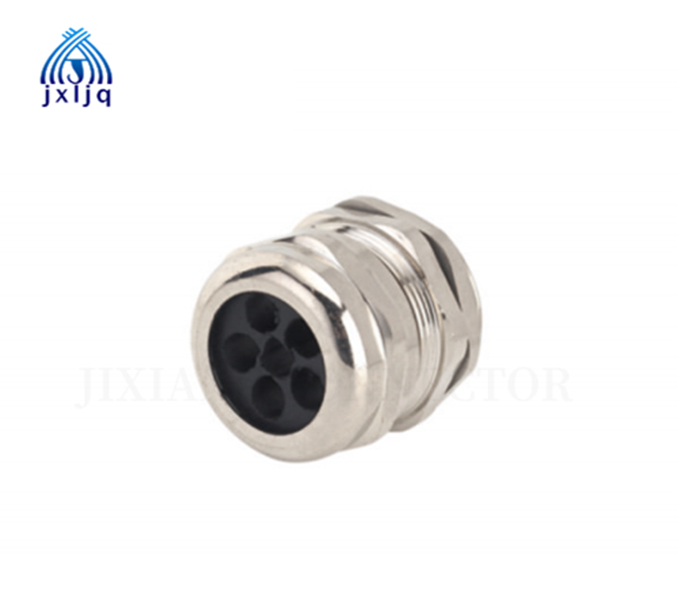

Brass Multiple Cable gland

Multiple Brass Cable Gland

Thread type: Metric, PG,G,NPT

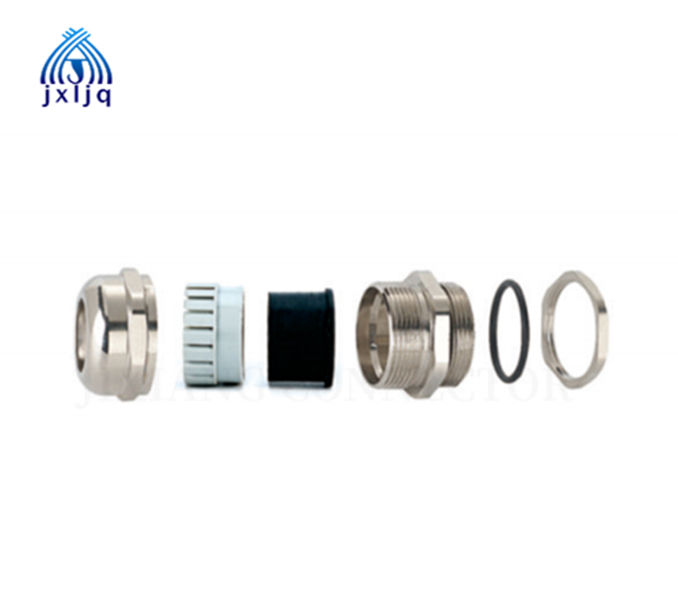

Material: Brass, nickel plated Claw: PA Sealing and sealing ring: NBR.Approvals: IP68、ISO9001、TUV
Protection degree: IP68
Temperature Resistance:-40C to 100°℃, short time to 120℃.
Function: Earemelyeasy instlltion ,simply insert cable through theassembled gland and tighten gland locknut until cable is secured. these cableglands are designed to
withstand water, dust, salt, acid-base, alcohol, oil and common solvent.
Variety of the Holes:Used for 2-8core cables, to make sure each wire to get the best waterproof insulation, and not intertwined.

Multiple type Waterproof Brass Cable Gland

Code	Thread	F	M2	M3	M4	M5	M6	M7	M8
JX-M12/*	M12×1.5	/	3-1.2	2.6-1.2	2.3-1	/	/	/	/
JX-M16/*	M16×1.5	/	4-1.6	2.6-1.2	2.3-1	2.5-1.0	2.0-1.0	/	/
JX-M18/*	M18×1.5	6×10	3.5-2	4-1.6	3-1.2	2.6-1.5	2.2-1	/	/
JX-M20/*	M20×1.5	5×11.5	5.3-1.5	5-2	4.2-1.7	3-1.2	3-1.2	3-1.2	3-1.2
JX-M22/*	M22×1.5	6×14	6-2.5	3.5-1.5	4.5-2	/	1	/	/
JX-M25/*	M25×1.5	6×14	8.7-4	8-4	5-2	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
JX-M27/*	M27×1.5	7×18	8.7-4.5	5-2	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
JX-M32/*	M32×1.5	8×22	10-5	10-5	9-4.5	8.0-4.0	7-3.5	6-3	/
JX-PG7/*	PG7	/	3-1.2	2.6-1.2	2.3-1	/	/	/	/
JX-PG9/*	PG9	/	4-1.6	2.6-1.2	2.3-1	2.5-1.0	2-1	/	/
JX-PG11/*	PG11	6×10	3.5-2	4-1.6	3-1.2	2.6-1.5	2.2-1	/	/
JX-PG13.5/*	PG13.5	5×11.5	5.3-1.5	3.5-1.5	4.2-1.7	4.2-1.7	/	/	/
JX-PG16/*	PG16	6×14	6-2.5	3.5-1.5	4.5-2	/	/	/	/
JX-PG21/*	PG21	7×18	8.7-4.5	5-2	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	/
JX-PG29/*	PG29	8×22	10-5	10-5	9-4.5	8.0-4.0	7-3.5	6-3	/
JX-G1/2/*	G1/2	5×11.5	5.3-1.5	5-2	4.2-1.7	3-1.2	3-1.2	3-1.2	3-1.2
JX-G3/4/*	G3/4	7×18	8.7-4.5	5-2	7-3.5	3.5-1.5	3.5-1.5	3.5-1.5	3.5-1.5
JX-G1/*	G1	8×22	10-5	10-5	9-4.5	8.0-4.0	7-3.5	6-3	/
