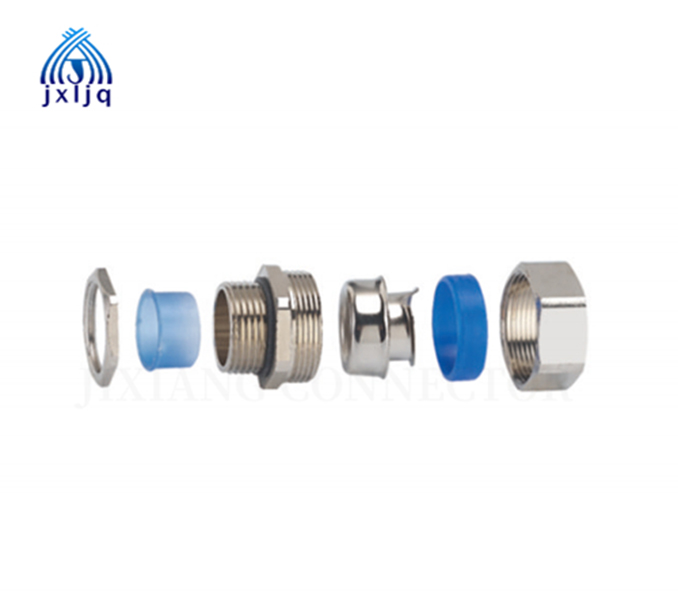

Brass Hose Connector
Material: external metal: nicke-plated brass;
Seal: NBR,PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40℃ to100℃, Short time to 120°C
Material: external metal: nicke-plated brass;
Seal: NBR,PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40℃ to100℃, Short time to 120°C

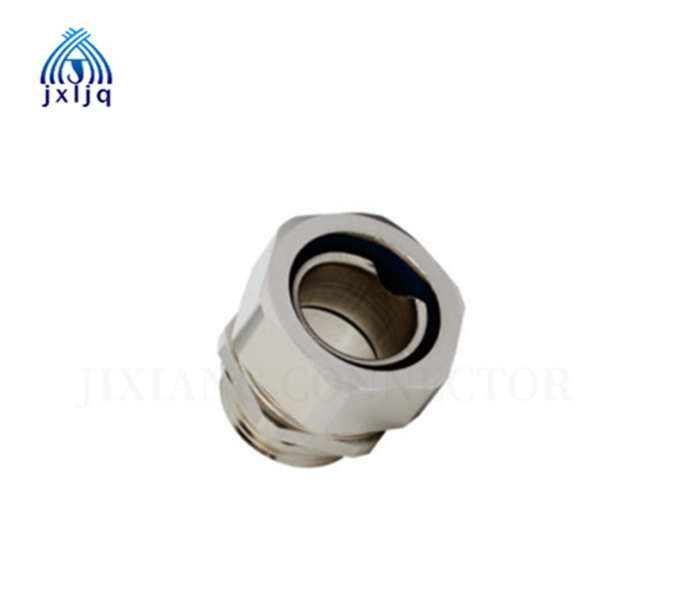

Brass Hose Connector
Material: external metal: nicke-plated brass;
Seal: NBR,PA6; Ferrule: brass
Sealing ring: thermoplastic elastomer or PTEE
Protection degree: IP65
Temeperature Range: Static:- 40℃ to100℃, Short time to 120°C
Metric thread type、PG thread type
| Code | φL (mm) | Thread (mm) |
Fits to tubing size | φB (mm) | C | D | SW1 | SW2 |
| JX-M10-BH | 6.5 | M10X1.0 | AD10 | 19 | 10 | 31 | 15 | 17 |
| JX-M12-BH | 9 | M12X1.5 | ADM | 23 | 10 | 33 | 19 | 21 |
| JX-M16-BH | 12.5 | M 16X1.5 | AD17 | 27 | 10 | 33 | 23 | 25 |
| JX-M20-BH | 16 | M20X1.5 | AD21 | 31 | 10 | 33 | 27 | 29 |
| JX-M25-BH | 21 | M25X1.5 | AD27 | 39 | 11 | 41 | 34 | 36 |
| JX-M32-BH | 27.5 | M32X1.5 | AD36 | 48 | 13 | 43 | 43 | 45 |
| JX-M40-BH | 35.5 | M40X1.5 | AD45 | 57 | 13 | 43 | 52 | 54 |
| JX-M50-BH | 45.5 | M50X1.5 | AD56 | 70 | 14 | 49 | 63 | 66 |
| JX-M63-BH | 49 | M63X1.5 | AD56 | 70 | 14 | 49 | 63 | 66 |
| Code | φL (mm) | Thread (mm) |
Fits to tubing size | φB (mm) | C | D | SW1 | SW2 |
| JX-PG7-BH | 6.5 | PG7 | AD10 | 19 | 7 | 28 | 15 | 17 |
| JX-PG9-BH | 10 | PG9 | AD14 | 23 | 7 | 30 | 19 | 21 |
| JX-PG11-BH | 12.5 | PG11 | AD17 | 27 | 7 | 30 | 23 | 25 |
| JX-PG13-BH | 14.5 | PG13.5 | AD19 | 29 | 7 | 30 | 25 | 27 |
| JX-PG16-BH | 16 | PG 16 | AD21 | 31 | 7 | 30 | 27 | 29 |
| JX-PG21-BH | 21 | PG21 | AD27 | 39 | 10 | 40 | 34 | 36 |
| JX-PG29-BH | 29 | PG29 | AD36 | 48 | 10 | 40 | 43 | 45 |
| JX-PG36-BH | 38 | PG36 | AD45 | 57 | 10 | 40 | 52 | 54 |
| JX-PG48-BH | 49 | PG48 | AD56 | 70 | 10 | 45 | 63 | 66 |
