Protection Class:IP66&IP67
Temperature:-20″”C+80°C
Thread Options: Metric , NPT, BSP & PG
Armoured Waterproof Cable Gland
Armored Cable Glands:CW、BW、BWC
Type: single Compression Gland
Material: Brass With Or Without Nickel Plated
Standard:BS6121
Protection Class:IP66 & IP67
Temperature:-20°C+80°C
Thread Options: Metric , NPT,BSP & PG
Metric thread type
Product features

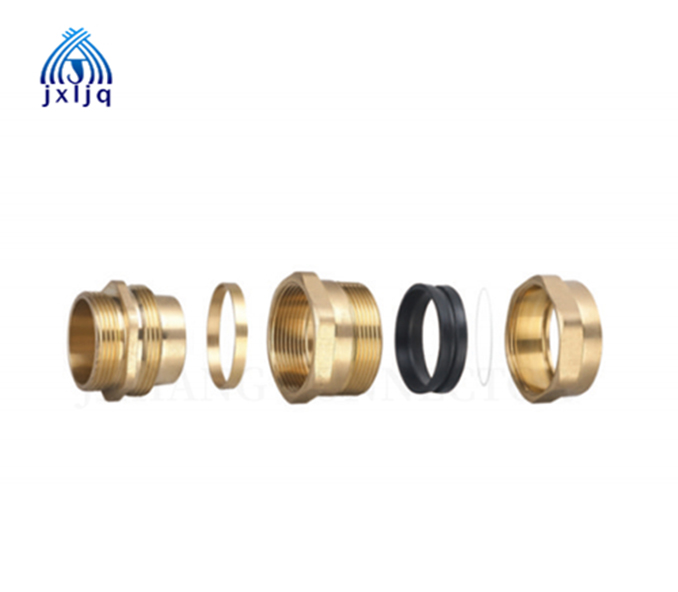

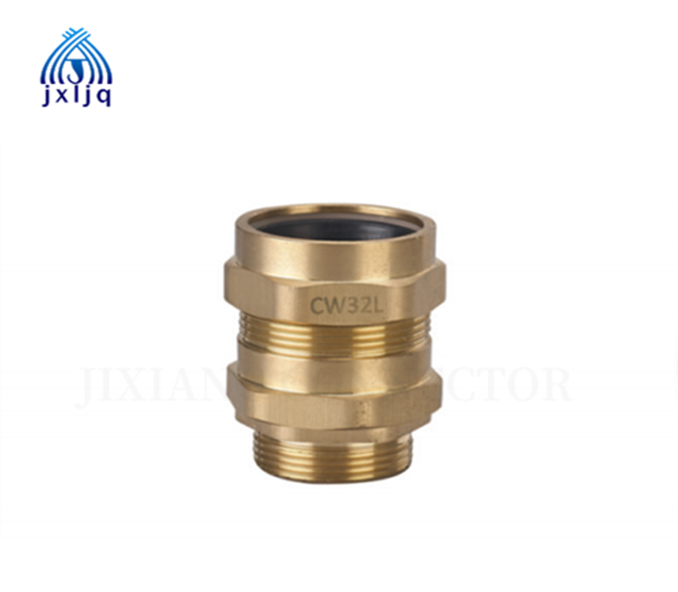

Armoured Cable Glands CW Series Type:
CW (single Compression Gland)Material:Brass With or Without Nickel PlatedStandard:BS6121
Protection Class:IP66&IP67
Temperature:-20″”C+80°C
Thread Options: Metric , NPT, BSP & PG
Application:For indoor or outdoor use with all types of SWA cables
Accessories: Matching accessories available like PVC Shrouds locknuts & earth tag
FunctionCW typeglands provide a seal on the outer sheath and a specific armour clamp for armoured cable.The armour clamp provides anelectrical bond for armour cable gland.
| Thread | Thread size “C | Minimum length of thread “D” |
Cable Range Max “A”(mm) |
Cable Range Max “B”(mm) |
| JX-CW20S | 20 | 10 | 11.8 | 17.8 |
| JX-CW20L | 20 | 10 | 14 | 20.8 |
| JX-CW25S | 25 | 10 | 18 | 24 |
| JX-CW25L | 25 | 10 | 20.3 | 27.4 |
| JX-CW32S | 32 | 10 | 24.5 | 31 |
| JX-CW32L | 32 | 10 | 26.5 | 34.2 |
| JX-CW40S | 40 | 13 | 30.4 | 38.5 |
| JX-CW40L | 40 | 13 | 33.2 | 41 |
| JX-CW50S | 50 | 13 | 40 | 47 |
| JX-CW50L | 50 | 13 | 44 | 53.5 |
| JX-CW63S | 63 | 14 | 50 | 59 |
| JX-CW63L | 63 | 13.5 | 56 | 66 |
| JX-CW75S | 75 | 15 | 63.5 | 73 |
| JX-CW75L | 75 | 15 | 69 | 73 |
