Earth Tag(PVC Shroud)

PVC Shroud/ Earth Tag

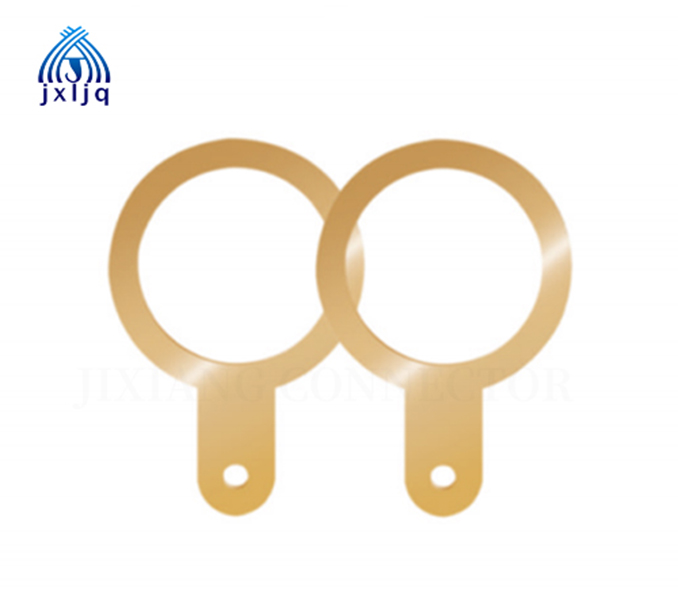

Earth Tag

Specifications			Size(mm)			Thickness(mm)
M	G	NPT	A	B	H	Thickness(mm)
M20	G1/2	NPT1/2	20.9	7	53.4	1
M25	G3/4	NPT3/4	25.9	7	59.4	1
M32	G1	NPT1	32.9	12.9	76.9	1.5
M40	G11/4	NPT11/4	40.9	14	88.6	1.5
M50	G11/2	NPT11/2	50.9	14	111	1.5
M63	G2	NPT2	63.9	14	128.4	1.5
M75	G21/2	NPT21/2	75.8	19.9	151.7	1.5
M90	G3	NPT3	90	20	182	1.5
M100	G3 1/2	NPT31/2	101.5	20	194	1.5

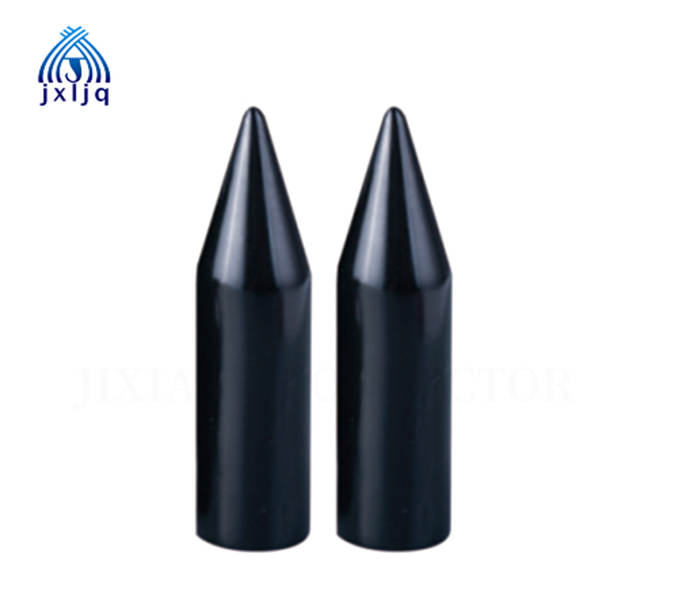

PVC Shroud

Specifications			Size(mm)			Thickness(mm)
M	G	NPT	A	B	H	Thickness(mm)
M20	G1/2	NPT1/2	20.9	7	53.4	1
M25	G3/4	NPT3/4	25.9	7	59.4	1
M32	G1	NPT1	32.9	12.9	76.9	1.5
M40	G11/4	NPT11/4	40.9	14	88.6	1.5
M50	G11/2	NPT11/2	50.9	14	111	1.5
M63	G2	NPT2	63.9	14	128.4	1.5
M75	G21/2	NPT21/2	75.8	19.9	151.7	1.5
M90	G3	NPT3	90	20	182	1.5
M100	G3 1/2	NPT31/2	101.5	20	194	1.5
