1.Material: Brass, nickel plated/SS304/SS316L
2.cable with packing seal;
3.with quick installation, safety, reliability, and other characteristicsof good protection;
4. suitable for clamping and fixing various types of armored cable.
Explosion-proof Cable Gland
Material: Brass,nickel plated / SS304/SS316L
Surface treatment: nickel plating, passivation
Sealing materials: silastic.Neoprene
Explosion-proof mark: ExdllC GB
Fireproof classification: Vo(UL94)
Protection grade: IP66-10 bars,(screwed-on part)
Ambinent temperature: Static from -60°C to 100℃, short time 120c
Dymamic from -20℃ to 80°℃, short time 100°c without halide
Environmental conditions: high-temperature and harsh environment

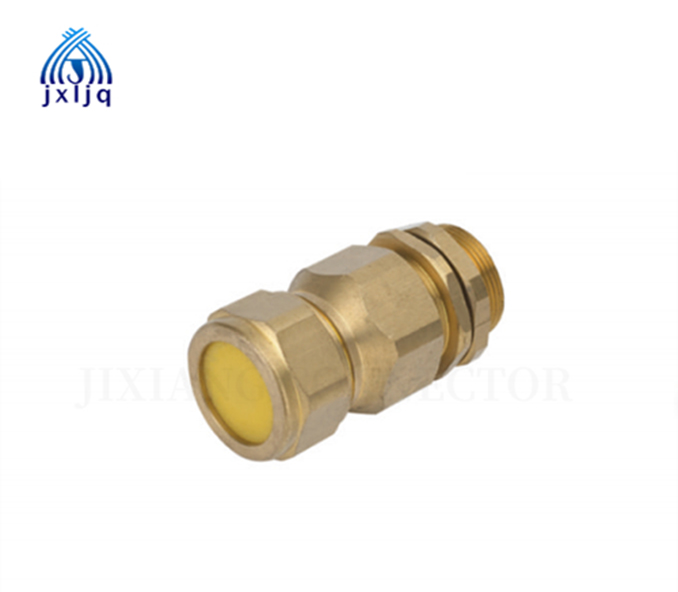

JX-6 Series Explosion-proof Cable Gland
Double compression
Product features
1.Material: Brass, nickel plated/SS304/SS316L
2.cable with packing seal;
3.with quick installation, safety, reliability,
and other characteristicsof good protection;
4. suitable for clamping and fixing various types of armored cable.

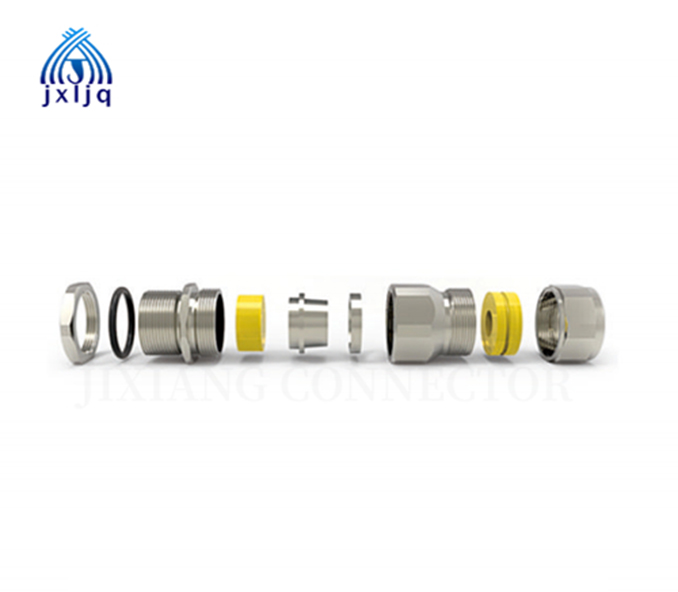

1.nut;2.sealing ring;3.inlet connecting body;4.middle connecting body;5.taper sleeve;6.taper nut;7.gasket;8.sealing ring;9.armored cable
| Code | Metric thread (M) |
Inch screw threads(G) |
(NPT)thread | Outerdiameter of cable | Thread length (mm) |
length (mm) |
Ex-mark | Protection level |
|
| Outlet Amm | Incoming ling B | ||||||||
| JX-6-EX-16 | M16×1.5 | – | – | 9 | 5-15 | 16 | 72 | Exd IIC Gb | IP66 |
| JX-6-EX-20 | M20×1.5 | G1/2 | NPT1/2 | 9 | 5-15 | 16 | 72 | ||
| JX-6-EX-25 | M25×1.5 | G3/4 | NPT3/4 | 15 | 8-20 | 16 | 72 | ||
| JX-6-EX-32 | M32×1.5 | G1 | NPT1 | 19 | 10-25 | 18 | 81 | ||
| JX-6-EX-40 | M40×1.5 | G11/4 | NPT11/4 | 27 | 12-30 | 20 | 94 | ||
| JX-6-EX-50 | M50×1.5 | G11/2 | NPT11/2 | 35 | 14-38 | 20 | 96 | ||
| JX-6-EX-63 | M63×1.5 | G2 | NPT2 | 42 | 20-48 | 20 | 99 | ||
| JX-6-EX-75 | M75×1.5 | G21/2 | NPT21/2 | 52 | 24-58 | 22 | 110 | ||
| JX-6-EX-88 | M88×1.5 | G3S | NPT3S | 65 | 30-70 | 22 | 115 | ||
| JX-6-EX-90 | M90×1.5 | G3 | NPT3 | 65 | 30-70 | 22 | 115 | ||
| JX-6-EX-100 | M100×1.5 | G4S | NPT4S | 86 | 45-102 | 23 | 121 | ||
| JX-6-EX-110 | M110×1.5 | G4 | NPT4 | 90 | 45-102 | 23 | 121 | ||
