Divided Structure Nylon Cable Gland

Nylon Cable Gland

Thread:Metric,PG,G(PF),and NPT thread.
Material:PA6
EPDM rubber for B.D parts;
(Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).
Protection degree:IP68-10 Bar
Working temperature:-40℃ to 100℃ in static state,or instaneous heat resistance up to 120℃;
-20℃ tosocin dynamic state,or instantaneous heat resistance up to 100℃.
Features:The claws and seals of excellent design,sealing nut hace a ‘click ‘sound and re-open,can holdcable firmly and have a wider cable range.
Resistant to salt water,weak acid,alcohol,oil,grease andcommon solvency.
Colours:Black RAL(9005),Grey (RAL7035)other color available upon request.
Note:Special size and type,please contact us

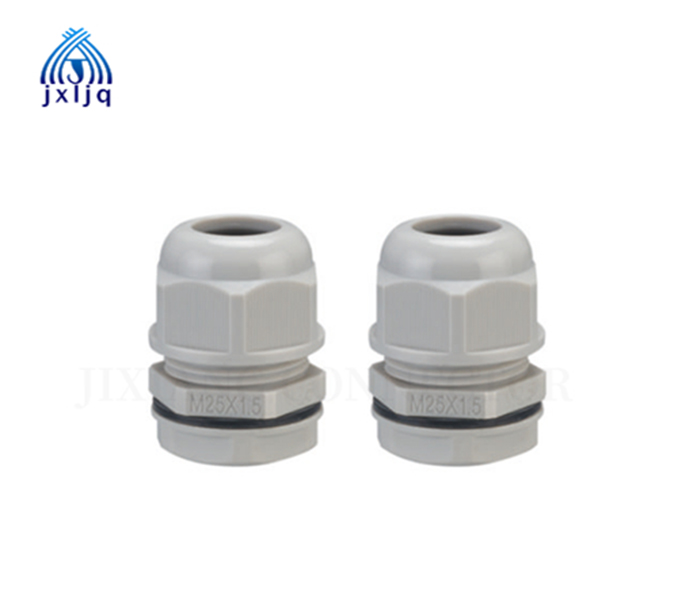

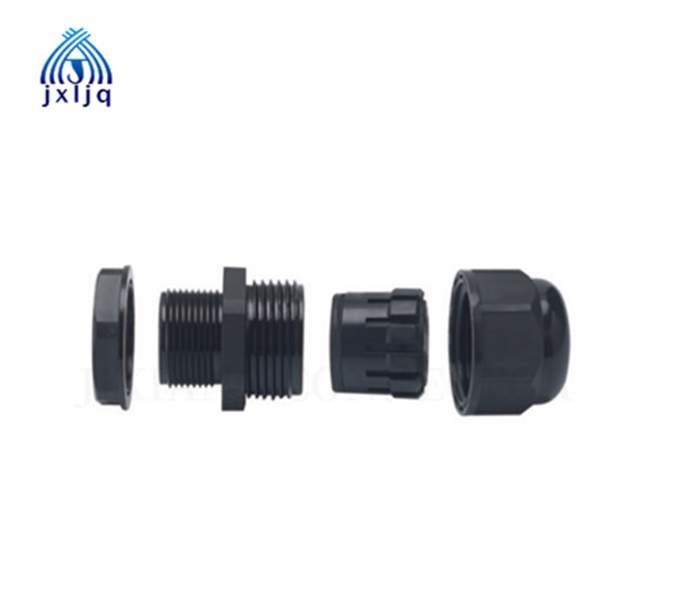

Nylon Cable Glands (Divided Structure)

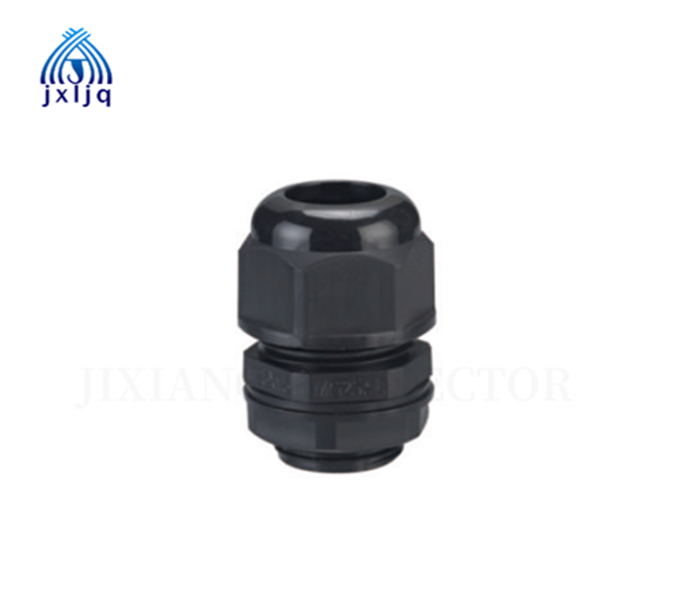

Metric thread type & NPT thread type

Code	Thread	Cable Range φ(mm)	Thread O.D. C1(mm)	Thread Length C2(mm)	Spanner Size A&F(mm)
JX-NLM12A-DS	M12×1.5	3-5.5	12	8.5	18/19
JX-NLM12B-DS	M12×1.5	4.5-7.8	12	8.5	18/19
JX-NLM16A-DS	M16×1.5	4-8	16	10	22/19
JX-NLM16B-DS		4-8	16	15	22/19
JX-NLM16C-DS		6-10	16	10	22/22
JX-NLM16D-DS		6-10	16	15	22/22
JX-NLM20A-DS	M20×1.5	6-12.5	20	10	24/24
JX-NLM20B-DS		9-14	20	10	27/27
JX-NLM20C-DS		9-14	20	15	27/27
JX-NLM22-DS	M22×1.5	9-14	20	10	27/27
JX-NLM25A-DS	M25×1.5	10-16	25	10	33/33
JX-NLM25B-DS		13-18	25	10	33/33
JX-NLM25C-DS		10-16	25	15	33/33
JX-NLM25D-DS		13-18	25	15	33/33
JX-NLM32A-DS	M32×1.5	15-22	32	15	41/42
JX-NLM32B-DS	M32×1.5	18-25	32	15	41/42
JX-NLM40-DS	M40×1.5	24-31	40	20	50/52
JX-NLM50-DS	M50×1.5	31-41	50	22	62/62
JX-NLM63-DS	M63×1.5	44-51	63	25	75/75
JX-NLM75-DS	M75×2.0	56-66	75	25	92/92
JX-NLM90-DS	M90×2.0	66-77	90	25	110/110

Code	Thread	Cable Range φ(mm)	Thread O.D. C1(mm)	Thread Length C2(mm)	Spanner Size A&F(mm)
JX-NLPG7-DS	PG7	4.5-7.8	12.5	8	17/19
JX-NLPG9-DS	PG9	4.5-7.8	15.2	8.2	22/19
JX-NLPG11-DS	PG11	6-10	18.6	10	24/22
JX-NLPG13.5-DS	PG13.5	7-12.5	20.4	10	27/24
JX-NLPG16-DS	PG16	9-14	22.5	10.8	30/27
JX-NLPG21-DS	PG21	13-18	28.3	12	36/33
JX-NLPG29-DS	PG29	18-25	37	12	46/41
JX-NLPG36-DS	PG36	24-31	47	14	57/52
JX-NLPG42-DS	PG42	31-41	54	15	64/62

G thread type

Thread: Metric, PG,G(PF),and NPT thread.Materiais: Nylon PA66
EPDM rubber for B.D parts;
(Accept to make super rubber: resist high temperaturerubber, resist strong acid/alkali, etc).
Protection degree: lP68-10 Bar
working temperature:-40°C to 100°C in static state, orinstaneous heat resistance up to120°C;-20°C to80°Cin dynamic state, orinstantaneous heat resistance up to 100°℃.
Features: The claws and seals of excellent design, sealing nut hace a “click”sound and re-open, can hold cable firmly and have a wider cable range.Resistant to salt water, weakacid, alcohol, oil, grease and common solvency.
Colors:Black(RAL9005),Grey(RAL7035), othercolor available upon request.Note: Special size and type, please contant us

Code	Thread	CableRange φ(mm)	Thread 0.D. C1(mm)	Thread Length C2(mm)	SpannerSize A&F(mm)
JX-NLG1/4-DS	G(PF)1/4″	5-7.8	13.157	8.5	19/19
JX-NLG3/8-DS	G(PF)3/8″	6-10	16.662	10	22/22
JX-NLG1/2-DS	G(PF)1/2″	7-12.5	20.955	10	27/24
JX-NLG3/4-DS	G(PF)3/4″	12.5-18	26.441	12	36/33
JX-NLG1-DS	G(PF)1″	17-25	33.249	15	46/41
JX-NLG11/4-DS	G(PF)11/4″	24-32	41.91	15	57/52
JX-NLG11/2-DS	G(PF)11/2″	31-41	48	22	60/62
JX-NLG2-DS	G(PF)2″	44-51	60	26	72/65
