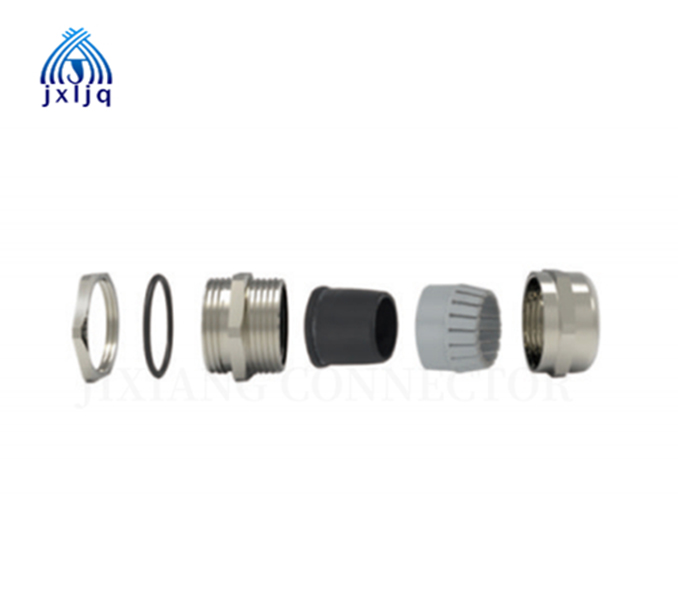

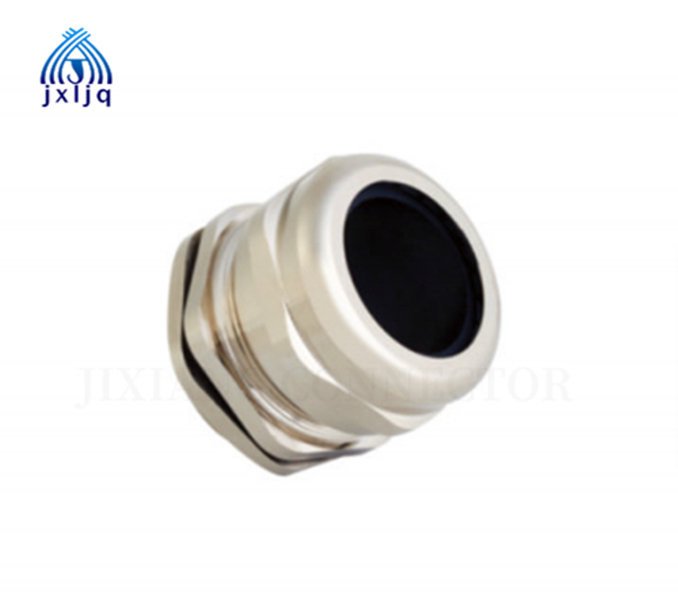

Brass Standard Cable Gland

Thread: Metric, PG. G(PF). NPT thread;
Materials： Brass with nickel plated for body.Nylon PA for plastic claw,
NBR for sealing insert and O-sealingring.
Protection degree: IP68-10 Bar;
Working temperature：-40°C tolOOX in static state,or instantaneous heat resistance uptol20°C;
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Remark: Customization is available.

Metric thread type:

Longer Thread Cable Gland– Metric thread

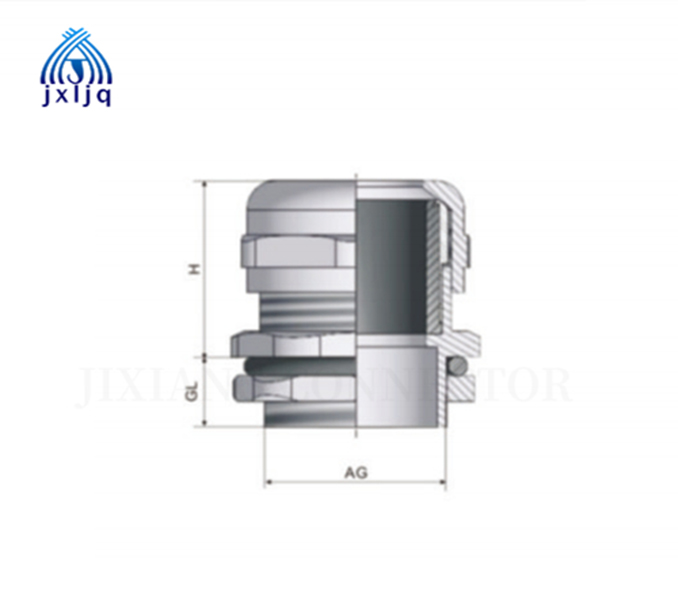

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-M6-NP	M6X1	3.5-1	6	6-6.2	5	11	8
JX-M8-NP	M8X1	5.5-2	8	8-8.2	5	16	12
JX-M10-NP	M10X1	6.5-3	10	10-10.2	7	19	14
JX-M12-NP	M 12X1.5	6.5-3	12	12-12.2	7	19	14
JX-M14-NP	M 14X1.5	8-4	14	14-14.2	7	19	17
JX-M16-NP	M 16X1.5	8-4	16	16-16.2	8	20	18
JX-M18-NP	M 18X1.5	10-5	18	18-18.2	8	21	20
JX-M20-NP	M20X1.5	12-6	20	20-20.2	8	22	22
JX-M22-NP	M22X1.5	14-10	22	22-22.2	8	23	24
JX-M24-NP	M24X1.5	14-10	24	24-24.2	9	25	24/27
JX-M25A-NP	M25X1.5	14-10	25	25-25.2	9	25	24/27
JX-M25B-NP	M25X1.5	16-8	25	25-25.2	9	27	27
JX-M25C-NP	M25X1.5	18-13	25	25-25.2	9	27	30/27
JX-M27A-NP	M27X1.5	18-13	27	27-27.2	9	27	30
JX-M27B-NP	M27X2	18-13	27	27-27.2	9	27	30
JX-M28A-NP	M28X1.5	18-13	28	28-28.2	9	27	30
JX-M28B-NP	M28X2	18-13	28	28-28.2	9	27	30
JX-M30A-NP	M30X1.5	18-13	30	30-30.2	9	29	30/32
JX-M30B-NP	M30X2	18-13	30	30-30.2	9	29	30/32
JX-M32A-NP	M32X1.5	22-15	32	32-32.2	10	29	35
JX-M32B-NP	M32X1.5	20-16	32	32-32.2	10	29	35
JX-M32B-NP	M32X1.5	20-16	32	32-32.2	10	29	35
JX-M32C-NP	M32X2	22-15	32	32-32.2	10	29	35
JX-M33A-NP	M33X1.5	22-15	33	33-33.2	10	29	35
JX-M33B-NP	M33X2	22-15	33	33-33.2	10	29	35
JX-M36A-NP	M36X1.5	25-18	36	36-36.2	10	31	40
JX-M36B-NP	M36X2	25-18	36	36-36.2	10	31	40
JX-M37A-NP	M37X1.5	25-18	37	37-37.2	10	31	40
JX-M37B-NP	M37X2	25-18	37	37-37.2	10	31	40
JX-M40A-NP	M40X1.5	25-18	40	40-40.2	11	31	40/45
JX-M40B-NP	M40X2	25-18	40	40-40.2	11	31	40/45
JX-M40C-NP	M40X1.5	30-22	40	40-40.2	11	35	45
JX-M40D-NP	M40X2	30-22	40	40-40.2	11	35	45
JX-M42A-NP	M42X1.5	30-22	42	42-42.2	11	35	45
JX-M42B-NP	M42X2	30-22	42	42-42.2	11	35	45
JX-M47A-NP	M47X1.5	33-25	47	47-47.2	11	37	50
JX-M47B-NP	M47X2	33-25	47	47-47.2	11	37	50
JX-M48A-NP	M48X1.5	33-25	48	48-48.2	11	37	50/52
JX-M48B-NP	M48X2	33-25	48	48-48.2	11	37	50/52

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-M50A-NP	M50X1.5	38-32	50	50-50.2	12	37	57/55
JX-M50B-NP	M50X2	38-32	50	50-50.2	12	37	57/55
JX-M54A-NP	M 54X1.5	38-32	54	54-54.2	12	38	57
JX-M54B-NP	M54X2	38-32	54	54-54.2	12	38	57
JX-M56A-NP	M56X1.5	38-32	56	56-56.2	12	38	57/59
JX-M56B-NP	M56X2	38-32	56	56-56.2	12	38	57/59
JX-M60A-NP	M60X1.5	44-37	60	60-60.2	13	38	64
JX-M60B-NP	M60X2	44-37	60	60-60.2	13	38	64
JX-M63A-NP	M63X1.5	44-37	63	63-63.2	13	38	64/68
JX-M63B-NP	M63X2	44-37	63	63-63.2	13	38	64/68
JX-M64A-NP	M64X1.5	44-37	64	64-64.2	13	38	64/68
JX-M64B-NP	M64X2	44-37	64	64-64.2	13	38	64/68
JX-M72-NP	M72X2	52-42	72	72-72.2	15	42	78
JX-M75-NP	M75X2	55-45	75	75-75.2	15	42	78
JX-M80-NP	M80X2	62-50	80	80-80.2	18	46	86/88
JX-M88-NP	M88X2	70-60	88	88-88.2	18	46	98
JX-M100-NP	M100X2	80-70	100	100-100.2	20	50	110
JX-M110-NP	M110X2	90-80	110	110-110.2	20	57	120
JX-M120-NP	M120X2	102-90	120	120-120.2	20	57	135
JX-M125-NP	M125X2	108-98	125	125-125.2	24	65	135
JX-M150-NP	M150X2	125-110	150	150-150.5	25	70	160

Small thread with large range series

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-M12-NP	M 12X1.5	8-4	12	12-12.2	7	19	17
JX-M14-NP	M 14X1.5	10-5	14	14-14.2	8	21	20
JX-M16-NP	M 16X1.5	10-5	16	16-16.2	8	21	20
JX-M20-NP	M20X1.5	14-10	20	20-20.2	8	23	24
JX-M20-NP	M20X1.5	16-9	20	20-20.2	9	27	27
JX-M25-NP	M25X1.5	22-15	25	25-25.2	9	29	35
JX-M32-NP	M32X1.5	25-18	32	32-32.2	10	31	40/35
JX-M40-NP	M40X1.5	33-25	40	40-40.2	10	36	50/45
JX-M50-NP	M50X1.5	44-37	50	50-50.2	12	37	64/55
JX-M63-NP	M63X1.5	52-42	63	63-63.2	13	41	78/68
JX-M72-NP	M72X1.5	62-50	72	72-72.2	15	45	86/78
JX-M80-NP	M80X1.5	70-60	80	80-80.2	18	46	98/86
JX-M88-NP	M88X1.5	80-70	88	88-88.2	18	46	110/98

PG thread type

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Mounting hole diameter(mm)	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-PG7-NP	PG7	6.5-3	12.5	12.5-12.7	7	19	14
JX-PG9-NP	PG9	8-4	15.2	15.2-15.4	8	20	18
JX-PG11-NP	PG11	10-5	18.6	18.6-18.8	8	21	20/21
JX-PG13.5-NP	PG13.5	12-6	20.4	20.4-20.6	8	22	22
JX-PG16-NP	PG16	14-10	22.5	22.5-22.7	9	23	24
JX-PG19A-NP	PG 19	14-10	25	25-25.2	9	25	24/27
JX-PG19B-NP	PG19	16-8	25	25-25.2	9	25	27
JX-PG21A-NP	PG21	18-13	28.3	28.3-28.5	9	27	30/32
JX-PG21B-NP	PG21	16-9	28.3	28.3-28.5	9	27	30/32
JX-PG25-NP	PG25	22-15	32	32-32.2	10	29	35
JX-PG29-NP	PG29	22-18	37	37-37.2	11	31	40
JX-PG36-NP	PG36	33-25	47	47-47.2	12	37	50
JX-PG42-NP	PG42	38-32	54	54-54.2	13	38	57
JX-PG48-NP	PG48	44-37	59.3	59.3-59.5	14	38	64
JX-PG63-NP	PG63	52-42	72	72-72.2	15	42	78

G,NPT thread type

Code	Thread AG	Cable range (mm)	Thread O.D.(mm)	Thread no. Per inch	Thread length GL(mm)	Joint length H(mm)	Spanner size (mm)
JX-G1/4-NP	Gl/4	6.5-3	13.1	19	7	19	14
JX-G3/8-NP	G3/8	8-4	16.6	19	8	19	18
JX-G1/2-NP	Gl/2	12-6	20.9	14	8	22	22
JX-G3/4-NP	G3/4	18-13	26.4	14	9	25	30
JX-G1-NP	G1	25-18	33.2	11	11	29	40
JX-G1-1/4-NP	G1-1/4	33-25	41.9	11	13	35	50
JX-G1-1/2-NP	G1-1/2	38-32	47.8	11	14	37	57
JX-G2-NP	G2	44-37	59.6	11	14	38	64
JX-G2-1/2-NP	G2-1/2	52-42	75.1	11	15	38	78
JX-G3-NP	G3	70-65	87.8	11	15	48	98
JX-NPT1/4-NP	NPT1/4	6.5-3	13.6	18	7	19	14
JX-NPT3/8-NP	NPT3/8	8-4	17	18	8	19	18
JX-NPT1/2-NP	NPT1/2	12-6	21.2	14	8	22	22
JX-NPT3/4-NP	NPT3/4	18-13	26.5	14	9	25	30
JX-NPT1-NP	NPT1	25-18	33.2	11.5	11	29	40
JX-NPT1-1/4-NP	NPT1-1/4	33-25	41.9	11.5	13	35	50
JX-NPT1-1/2-NP	NPT1-1/2	38-32	48	11.5	14	37	57
JX-NPT2-NP	NPT2	44-37	60	11.5	14	38	64
JX-NPT2-1/2-NP	NPT2-1/2	52-42	72.6	8	15	38	78
JX-NPT3-NP	NPT3	70-65	88.6	8	15	45	98
